The Privateer’s Long-Range Rally Raider…
The Dakar Rally is widely regarded as the toughest off-road race on the planet — a brutal test of endurance, navigation, speed, and resilience. Spanning thousands of miles across deserts, dunes, rocky tablelands, and unpredictable terrain, Dakar pushes both rider and machine far beyond the limits of traditional off-road racing. Stages often run for hundreds of miles in a single day, with competitors battling fatigue, heat, navigation challenges, and mechanical strain for nearly two weeks.
In this environment, motorcycles must be lightweight yet durable, incredibly stable at high speed, capable of carrying significant fuel loads, and able to withstand repeated impacts and mechanical abuse. It is a proving ground for the world’s most advanced off-road competition bikes.

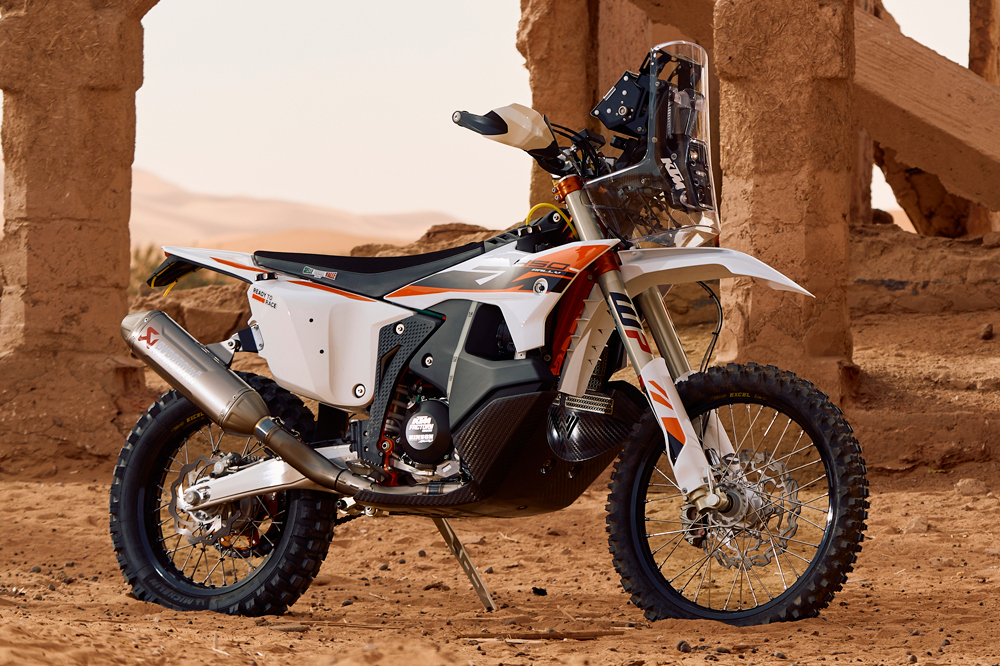

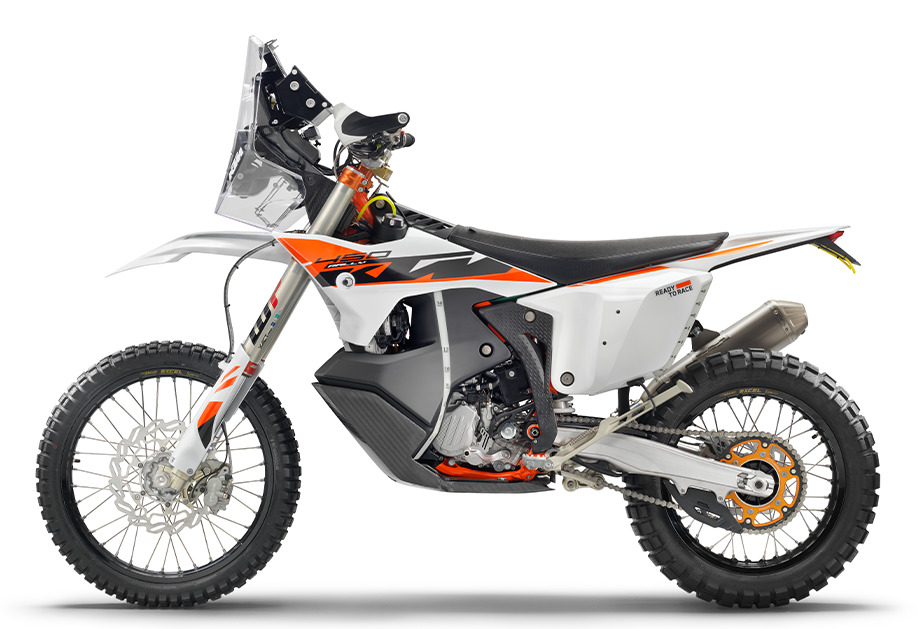

With the 2026 Dakar Rally kicking off in early January, we decided to take a look at the gold standard of production rally bikes: the KTM 450 Rally Replica. Built in extremely limited numbers (~100 units) each year, this machine is the closest thing you can buy to a full factory Dakar racing bike. It’s no mere collector’s item or show queen. In fact, it’s what most Dakar privateers choose to ride.
Unlike a normal production motorcycle, the Rally Replica is hand-assembled inside KTM’s motorsports division alongside the factory race bikes ridden by elite riders such as defending champion Daniel Sanders. Nearly every component — from its multi-tank fuel system to its navigation tower and long-travel WP suspension — is engineered specifically for rally raid competition.
For many privateers entering the Dakar Rally, the KTM 450 Rally Replica isn’t merely an option — it’s the only realistic tool capable of finishing this brutal two-week race. Let’s take a look at what makes theis Dakar-spec weapon so special.
Not Your Normal 450…
Many riders assume the Rally Replica is just a race-prepped version of KTM’s 450 EXC-F or XC-F. In reality, it is an entirely different motorcycle, engineered from the frame up for 500-mile stages, high-speed desert navigation, and the brutal demands of rally raid competition. Everything about the Rally Replica is built for sustained speed, durability, and rider efficiency over two weeks of Dakar conditions.
KTM only builds around 100 units annually, a number small enough that almost every bike has a planned destination: either a privateer racer, a supported rally team, or a collector seeking a true competition-grade machine. Each one is assembled by KTM technicians in the same environment where factory rally bikes are built.
Basically, it’s the closest a privateer can get to a full KTM factory rally bike, sharing much of the same DNA used by champions like Toby Price, Kevin Benavides, Matthias Walkner, and Daniel Sanders. What sets it apart:

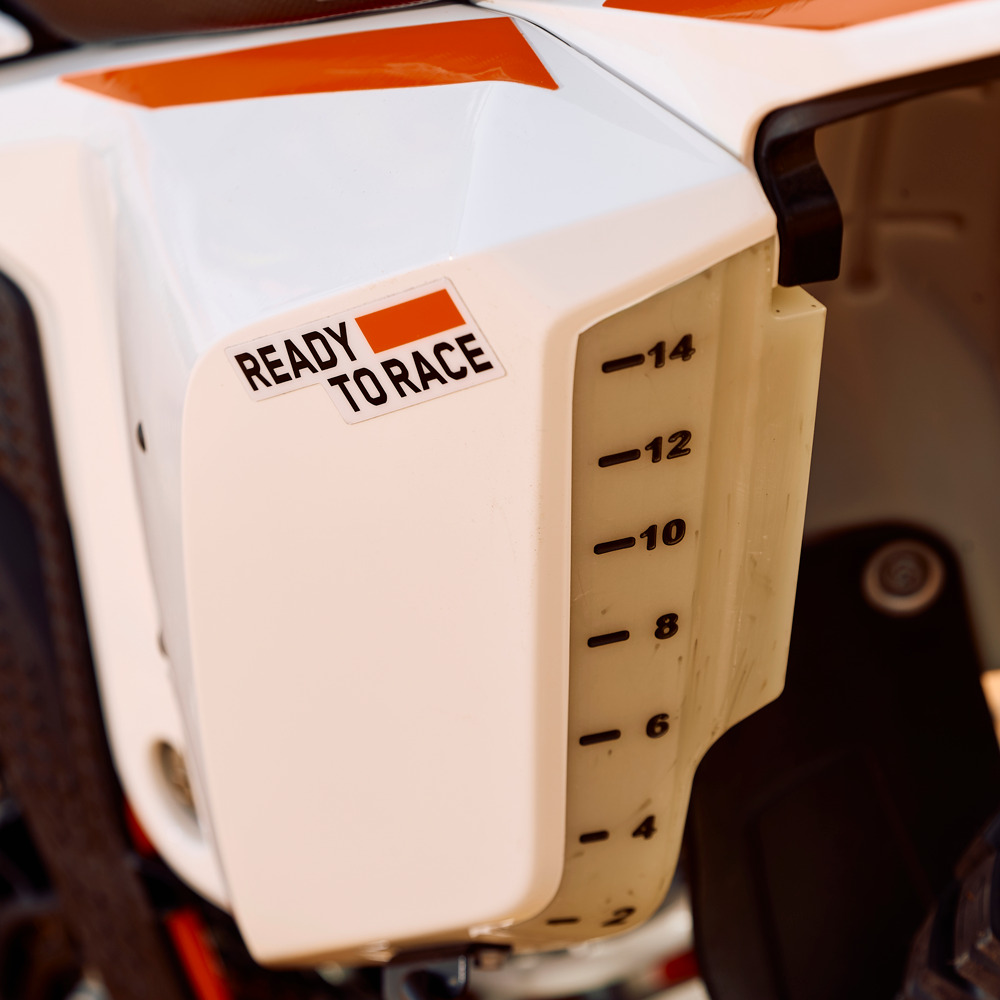

1. Multi-Tank Fuel System (~35 liters total capacity)
While a standard 450 enduro carries ~2–2.5 gallons of fuel, the Rally Replica uses a multi-tank system of front lateral tanks + rear auxiliary tank — giving it approximately 35 liters (~9.25 gallons) of fuel capacity. This allows riders to cover the 150–250 km liaison sections and timed stages without refueling, a necessity in Dakar where fuel stops are strategically limited.
The tank layout also helps:
- Centralize mass for stability at speed
- Balance fuel load as tanks drain
- Reduce rider fatigue on long stages

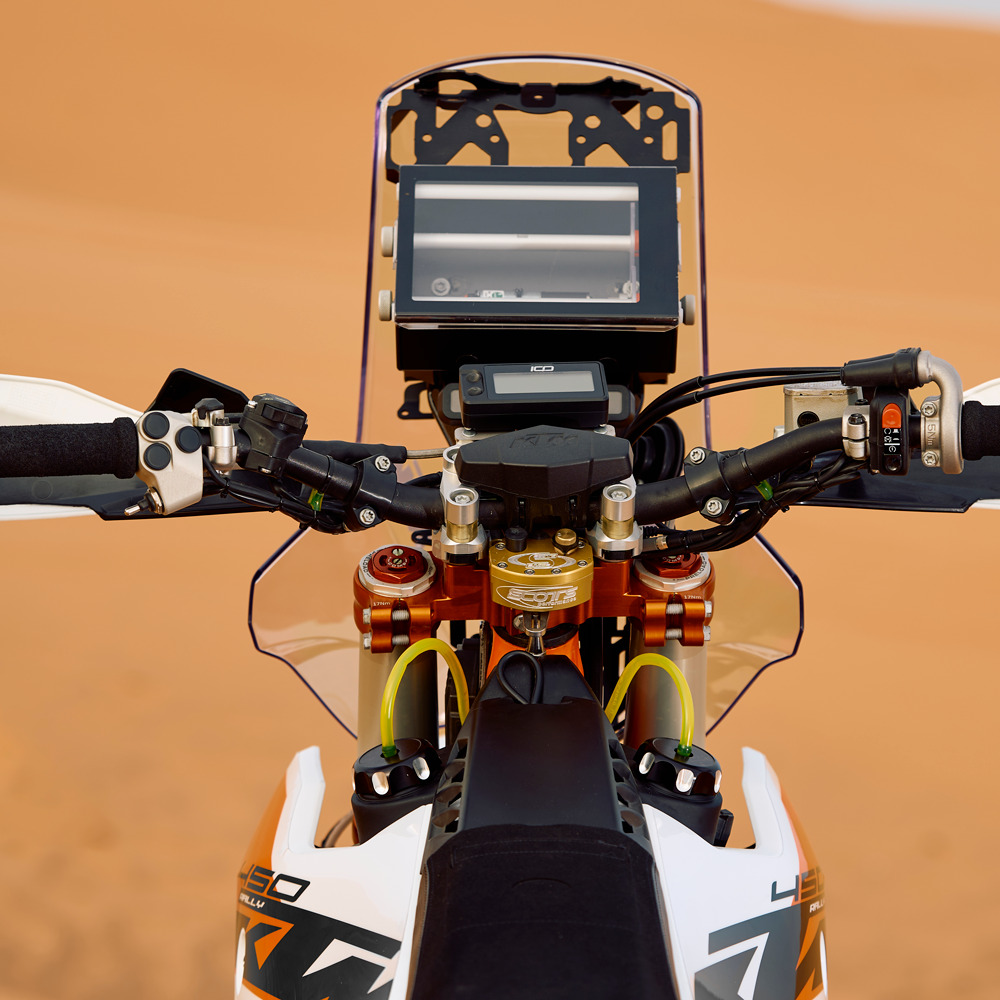

2. Rally-Spec Navigation Tower & Electronics
Unlike a normal dirt bike with a simple handlebar-mounted GPS, the Rally Replica carries a full rally navigation tower, including:
- Roadbook reader
- Tripmasters
- Electronic waypoint instruments
- High-output LED lighting and fairing
The entire cockpit is designed to handle high wind load at 90-100+ mph while keeping critical navigation tools vibration-free and readable.

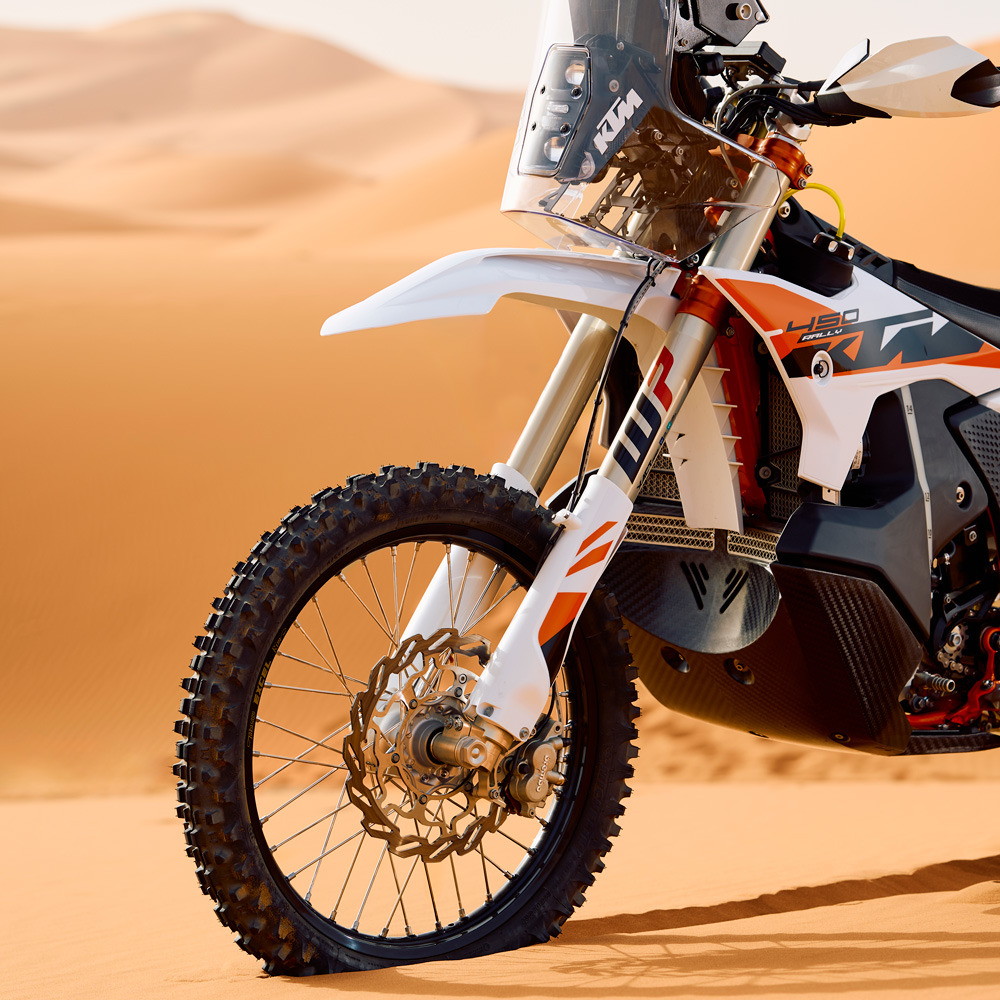

3. Long-Travel, Rally-Tuned WP Suspension
While enduro bikes are tuned for technical, low- to mid-speed terrain, the Rally Replica needs to absorb high-speed hits for hours at a time. It uses:
- Factory WP XACT PRO 48 mm fork
- WP XACT PRO rally shock with long-stroke valving
- Increased oil volume for heat management
- Damping suited for whoops, dunes, and rocky piste at high velocity
This setup lets the bike stay composed at speeds that would overwhelm standard enduro suspension.
4. Rally Geometry & Chassis Reinforcement
The Rally Replica frame differs significantly from an EXC-frame:
- Revised geometry for stability at 100+ mph
- Additional reinforcement for crash resilience
- Wider, stronger subframe to support rear tank and luggage
- High-speed steering characteristics closer to a desert racer than a trail bike
Where a 450 enduro is agile and flickable, the Rally Replica is designed to hold a line at speed across unpredictable terrain.

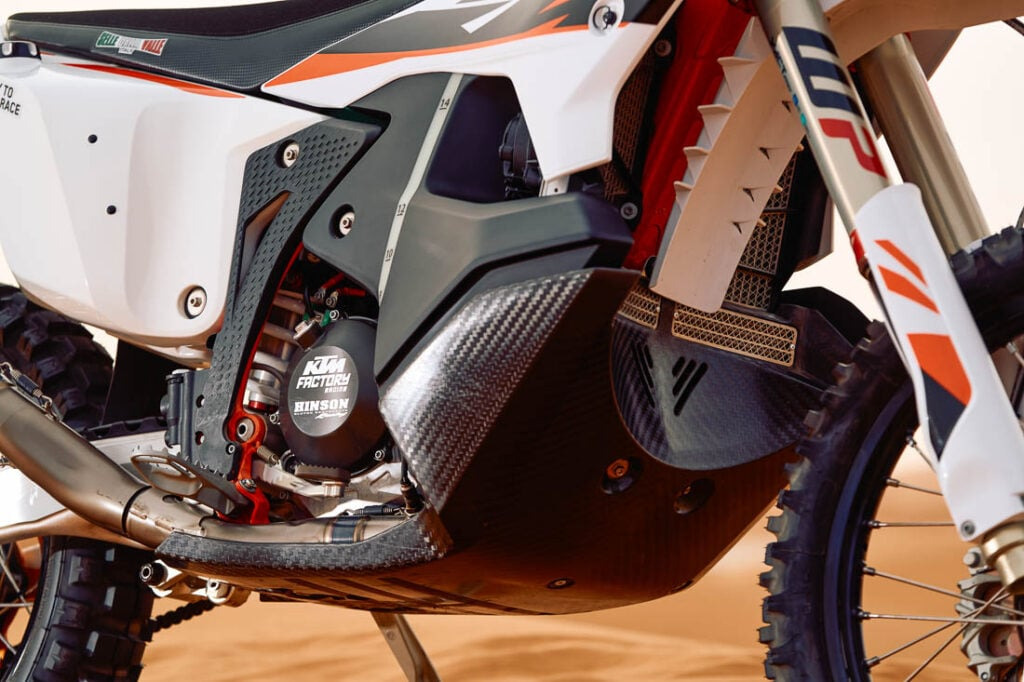

5. Engine Built for Endurance, Not Peak Output
The Rally Replica’s 450cc SOHC engine is tuned for:
- Extremely high durability (15 days of wide-open racing)
- Linear power delivery for traction on sand and rock
- Cooler running in deep dunes
- Smooth, efficient torque over peak horsepower
This isn’t a motocross-style hit — it’s a motor designed to run pinned for hours without losing performance.
6. Heavy-Duty Cooling System
Dakar stages can easily exceed 110°F, requiring serious cooling solutions:
- Oversized radiators
- Additional oil cooling capacity
- Improved airflow through the fairing
A standard 450 enduro would cook itself under Dakar load — the Rally Replica is built to survive it.
7. Rally Ergonomics for Long Days in the Saddle
The bike is designed for comfort at speed, not tight singletrack:
- Taller rally seat
- Wider pegs for stability
- Narrow midsection for standing endurance
- Wind-deflecting fairing that reduces fatigue on the neck and shoulders
The ergonomics are optimized for standing 70–80% of the time.
8. Race-Grade Wheels, Brakes & Components
Everything is stronger, lighter, or built for high mileage:
- Heavy-duty spoked wheels
- Oversized brake rotors
- Reinforced hubs
- Steel rear sprockets for longevity
- Rally-spec tires capable of 100+ mph desert work
Where a normal enduro needs frequent service, the Rally Replica is built to finish a two-week rally with minimal intervention. A significant portion of the 2026 450 Rally Replicas will line up at the start of the 2026 Dakar Rally. Many privateer competitors in Rally2 and non-factory categories rely on the Rally Replica. It’s one of the only motorcycles that allows them to compete realistically in the world’s most grueling rally raid.
KTM 450 Rally Replica: Specs (2026)
Engine
- 449.3cc single-cylinder, SOHC, fuel-injected
- Liquid-cooled
- Bore x Stroke: 95.0 mm × 63.4 mm
- Estimated output: 55-60+ hp (KTM does not publish official figures)
- Rally-tuned torque delivery optimized for long stages
- 6-speed wide-ratio gearbox
- Hydraulically actuated clutch
- Rally-spec exhaust system
Chassis & Suspension
- Hand-assembled chromium-molybdenum steel frame
- Reinforced aluminum subframe
- WP XACT PRO 48 mm front fork (closed cartridge, fully adjustable)
- WP XACT PRO rear shock, fully adjustable
- Suspension Travel: ~305 mm front / ~300 mm rear
- Lightweight aluminum swingarm
Fuel System & Range
- Multi-tank layout: 34–35 liters total capacity
- Rally-grade fuel pump and redundancy
- Designed to cover long liaison and special stages between refuels
Brakes
- 300 mm front disc with rally-spec caliper
- 240 mm rear disc
- No ABS—as required by rally competition
Wheels & Tires
- 21-inch front / 18-inch rear
- Heavy-duty aluminum rims
- Rally-raid tires designed for desert, hardpack, and mixed terrain
Dimensions
- Dry Weight: ~139 kg (~306 lb)
- Seat Height: ~960–980 mm
- Ground Clearance: 300+ mm
- Wheelbase: ~1500–1520 mm
Navigation & Electronics
- Full rally navigation tower
- Adjustable roadbook + switchgear
- Dual tripmasters
- Rally LED lighting
- No traction control, wheelie control, or ABS—pure competition setup

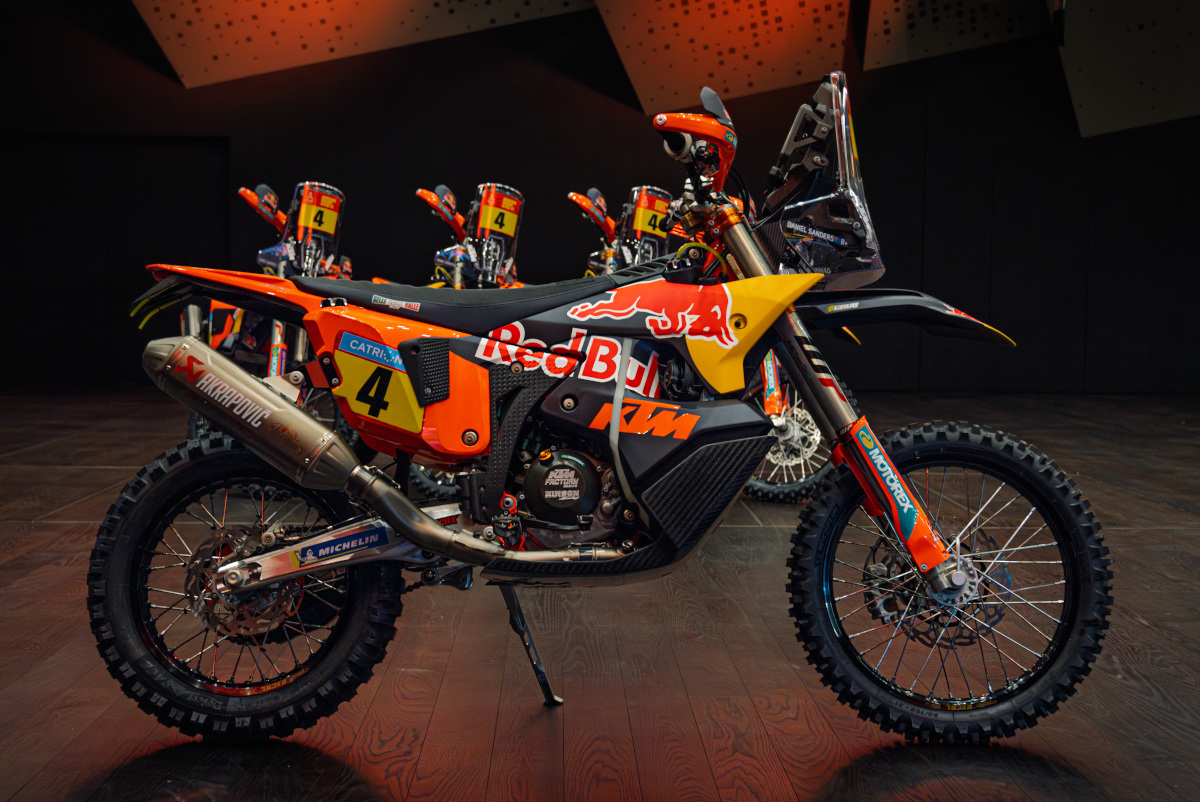

The Daniel Sanders Edition
Australian rally star Daniel “Chucky” Sanders is one of the most charismatic and naturally gifted competitors in modern rally raid. For the 2026 model year, KTM produced a limited “Daniel Sanders Edition” of the Rally Replica to honor his contributions and aggressive riding style. This edition features:
- Unique graphics inspired by Sanders’ factory machine
- Setup preferences reflecting his suspension and ergonomic choices
- Commemorative touches highlighting his Dakar podium run
Just five Sanders Editions were built, reinforcing the idea that KTM’s Rally Replica program isn’t just a production exercise — it’s deeply tied to the personalities and achievements of KTM’s top factory racers.
Looking Ahead: The 2026 Dakar Rally
The 2026 Dakar Rally will once again take place in Saudi Arabia, continuing its modern-era tradition of traversing the country’s vast deserts, canyons, dunes, and rocky highlands. The rally is expected to follow the now-established format:
- 14 total days, including 12 competitive stages
- Approximately 8,000+ kilometers of combined liaison and timed special stages
- One rest day positioned near the midpoint
- Multiple Empty Quarter dune crossings, which have become a defining feature of the Saudi-era Dakar
- A renewed emphasis on navigation difficulty, with reduced GPS guidance and greater reliance on traditional roadbook skills
- The Dakar continues to test not only speed, but also mechanical sympathy, strategic pacing, and the ability to adapt to rapidly changing terrain.
Privateers typically make up more than half of the motorcycle field, relying on customer-ready rally machines such as the KTM 450 Rally Replica, as well as Husqvarna, GasGas, and Honda rally platforms.
As the Dakar continues to evolve, the 2026 edition is expected to be another grueling test of endurance, navigation, strategy, and mechanical preparation — the same attributes that have defined the rally since its earliest days.
