Black Cycles Australia builds a 400cc street tracker…
Introduced back in 2000, the Suzuki DR-Z400 remains still one of the most popular dual-sports on the market, boasting an especially strong aftermarket and rider community. While the performance isn’t in line with the European hot rods from KTM and Husqvarna, it’s a highly versatile, bulletproof machine that will run forever — in fact, our friend Isaac Siegl of Speedy Siegl has done 100,000 miles on his DR-Z!
Here at BikeBound, we’re big fans of flat track racing, and American Flat Track’s AFT Singles class consistently offers some of the closest, best racing in the world. The bikes are production-based 450cc off-road machines specially prepared for flat track, sometimes known as DTX bikes.
We’ve often thought that a DTX-inspired street tracker would be a load of fun, but the frequent service intervals, narrow gearing, and non-street-legal nature of a 450cc motocrosser doesn’t make for an ideal street bike.
Enter our friend Noel Muller of Black Cycles Australia, who had the idea of turning the DR-Z400 into a street tracker. The one you see here is actually his third such build, and probably the last:
“This one is the third (and probably final) DRZ flat tracker build, as we want to keep the builds as unique as possible!”
Starting with an ’07 DR-Z, Noel outfitted the bike with a set of 18″ KKE wheels wrapped in Dunlop’s K180 street-legal flat track tires, while XXX Rated Suspension lowered the forks 18 cm and the rear was dropped via an adjustable rear link.
Noel then fabbed up a 26mm square-tube subframe to support the bespoke aluminum tail / fender and custom seat, and also made the 1mm aluminum fuel tank and front number plate from scratch. Highsider headlights are recessed in the number plate, and the bike is running ProTaper bars, HEL Performance brake lines, GPI radiators, and a digital enduro gauge.
Other highlights include the custom 316 stainless exhaust, handmade aluminum overflow reservoir, and a blacked-out engine with the Black Cycles logo laser-etched into the covers.
Just at Popbang Classics wired the bike and also painted the bike in matte black, white, and aqua blue. Says Noel:
“As an old Metallica fan I’ve named the bike ‘Ride the lightning’ to go with the lightning bolt paint scheme!”
Below, Noel gives us the full story on the build.
DR-Z400 Street Tracker: In the Builder’s Words…

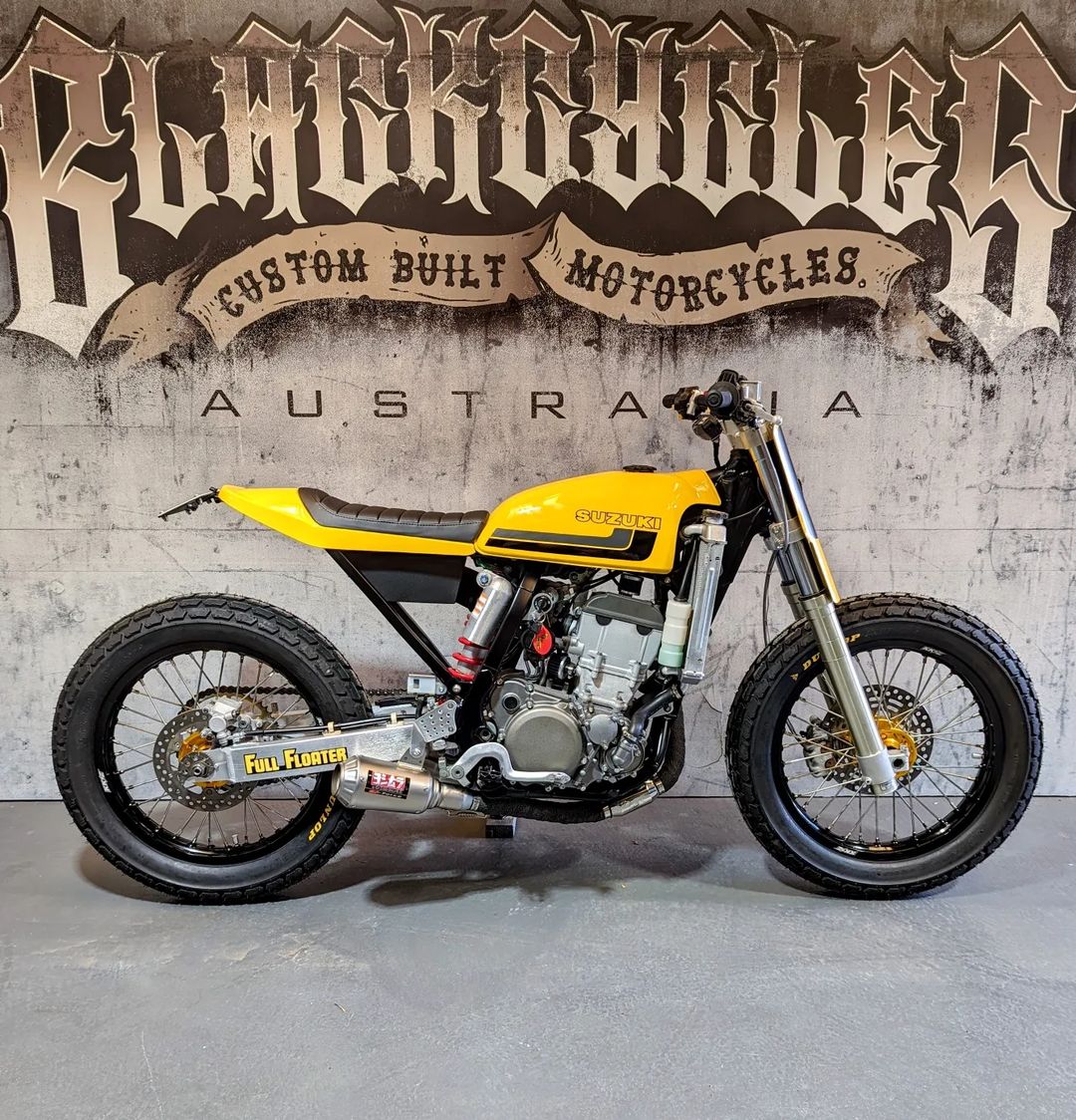

Towards the end of 2022, a new customer, Joe, contacted us from North Queensland, as he had seen the previous yellow DR-Z400 flat track build and wanted something very similar.
Soon after we purchased a good low mileage 2007 Suzuki DR-Z400 as a base to build from. This one is the third (and probably final) DRZ flat tracker build, as we want to keep the builds as unique as possible!
First thing was to order a set of KKE racing wheels, and as they don’t come in an 18″ / 18″ set, we bought an extra 18″ rim and have it laced in for the front. Next were some Dunlop K180 street-legal flat track tyres and wave brake discs as well.
Once these were on the bike, we worked out the ride height (how much to lower the suspension) and had Chris at XXX Rated Suspension rebuild and lower the conventional forks 180mm. Next was to make a heavy-duty adjustable rear link set-up to drop the rear.
All original plastics and seat were binned and a 26mm square tube subframe was fabricated (originally it was 20mm tube from memory).
A completely handmade 1mm aluminum fuel tank, tail, and front headlight plate were built, and then a custom seat, which was later covered in perforated black by Adam at Carman’s Auto Trimmers.
A pair of low rise ProTaper bars, digital enduro gauge, GPI radiators, GPI black silicone hoses, black Unifilter, sports bike lever set added, and also front and rear HEL Performance brake lines made to fit. Not forgetting the Highsider Satellite headlights and Kellerman Atto all-in-ones.
We fabricated a low-slung 316 stainless steel (slightly oversized) exhaust, finished off with a stainless steel motocross style muffler. A handmade aluminum overflow bottle was also made.
A number plate mount was built to sit behind the rear tyre (mainly due to clearance issues in the usual position)!
The motor was blacked out on this bike in a “matte” and side cover protectors were laser-etched with the Black Cycles logo and font.
Justin at Popbang Classics handled the wiring and knocked it out of the park with the “matte” finished tins in black, white, and a custom-mixed aqua blue (which happens to be owner Joe’s company colors)!
At this point Joe is yet to receive (or even see) the bike yet, as he is 16.5 hours away from Brisbane. The bike starts and runs beautifully but is yet to be ridden, as we’re going to change to a heavier rear spring before it leaves for its new home…
Builder Thanks
Special thanks to Joe for being the perfect patient customer.
Justin @popbangclassics
Adam @carmans_auto_trimmers
Chris @x.x.x.rated.suspension
The guys at @helperformance
Follow the Builder
Black Cycles Australia: Black Cycles Australia | @blackcyclesaustralia
More Black Cycles Builds
Enduro Brick: BMW K100 Street Scrambler - Black Cycles Australia builds a John Player Brick… The BMW K100 — aka the “Flying Brick” — remains one of the more peculiar designs to roll out of the Bavarian Motor Works factory. Conceived […]
Stay Gold: Honda GL1200 Goldwing Café Racer - Aspencade to Café: Black Cycles Australia’s Goldwing Cafe Racer… Today we think of the Honda Goldwing as the quintessential big touring bike — a roadgoing La-Z-Boy loaded with creature comforts of every kind, capable of […]
Harley-Davidson Pan America “Super Scrambler” - Black Cycles Australia scrambles Harley’s adventure bike… In 2020, the Harley-Davidson Pan America arrived as the first all-American adventure bike, packing a 1250cc 150-hp “Revolution Max” V-twin and electronically-adjustable Showa suspension. The motorcycling world was […]
V-Racer: Harley-Davidson V-Rod Café Racer - The first custom creation to roll out of Donut Garage… In 2002, Harley-Davidson released the V-Rod, the first of the VRSC (V-Twin Racing Street Custom) series — a line of muscle bikes whose 1131cc Revolution […]
Back from the Shed: Honda CB750K Café Racer - Worth the Wait: CB750 from Black Cycles Australia… For every lovely vintage bike you see cruising the backroads, parked up at the local tavern, or racing the track on Sunday, there are scores of abandoned […]
Flying Triple: BMW K75 Custom - Three-cylinder Flying Brick from Black Cycles Australia… The BMW K75 was the 750cc triple-cylinder variant of the company’s K series “Flying Bricks” — nicknamed for the distinct layout of their inline engines. The company wanted […]
Ride the Lightning: Suzuki DR-Z400 Street Tracker - Black Cycles Australia builds a 400cc street tracker… Introduced back in 2000, the Suzuki DR-Z400 remains still one of the most popular dual-sports on the market, boasting an especially strong aftermarket and rider community. While […]
Speed Train: Harley-Davidson Dyna Café Racer - Big Twin Café Racer from Black Cycles Australia… The Harley-Davidson Dyna Super Glide (FXD) boasted a monster 1450cc Twin Cam 88 V-twin that cranked out 67 hp and a stump-pulling 86 lb-ft of torque at […]
The Night Scrambler: Nightster 1200 Scrambler - The Scrambler We Wish Harley Had Built… Introduced back in 2007, the Sportster XL1200N Nightster was a blacked-out, lowered version of the regular Sportster — something of a “factory custom.” Though it was mainly an […]
Dreamy Duc: 1971 Ducati 250 Café Racer - Black Cycles Australia builds a 250cc Ducati café racer… Starting in 1950s, brothers Joseph and Michael Berliner of the Berliner Motor Corporation were the US importers for Ducati and many other European marquees. As the […]
Super Special Magazine: Issue 37! - We’re thrilled to have two articles in the new issue of Italy’s premier custom motorcycle magazine, Super Special. One is the 1950 Triumph Preunit from Noel Muller of Black Cycles Australia and Justin Holmes of […]
Steampunk Virago: Yamaha XV1000 Rat Rod - Black Cycles Australia builds a “Steampunk Rat Bike”… The rat bike has a long and storied tradition in the motorcycle world. Rat bikes are generally hard-ridden, uncleaned machines with plenty of rust, patina, road grime, […]
Italian for Blown: Turbo Ducati 916 “Soffiato” - Black Cycles Australia builds a Turbo Ducati! In 2001, the Ducati Monster S4 was the first of Bologna’s beloved Monsters to receive a liquid-cooled L-Twin heart transplant from the superbike side of the factory, and […]
Honda CBR600F4i Street Tracker! - Black Cycles Australia builds a CBR street tracker… Historically, the 600cc sport bike class has remained one of the most competitive segments of the market, where race-replica supersports perform double duty as sharp-edged track weapons […]
Australian Triumph: 1950 TR5 Bobber - Black Cycles x PopBang Classics build a Pre-unit Bobber… In the first half of the 20th century, the traditional way to build a motorcycle involved bolting together a separate engine and gearbox via a third […]
LOVE this build.
Very nicely done. Respect!
Looks good
Definitely eye-catching! However, I know these bikes reasonably well (having owned one), and lowering links are a no-no on these things. Lowering the seat up to 2″ isn’t problematic, but if we’re talking about lengthening the swing links (as opposed to redesigning the knuckle link, which I’ve never heard of anyone doing for this bike) 2″ is the limit. At that point the leverage ratio has changed enough that yup, the spring is easily overwhelmed and the action suffers. They say they’re going to change to a heavier spring, so there you go. But then for decent riding the damping might not be able to compensate for that spring rate increase. Better to internally reduce the shock shaft travel. You can also get a 2″ seat height reduction that way on the stock spring before you encounter the need to get a shorter spring. You won’t have issues with bottoming the wheel on the inside of the fender or lousy shock action. Basically, making the bike look a certain way has its limitations. Lots of lowered/slammed bikes have been done the cheap/easy/simple/wrong way.
