204-hp Norton Manx R: The Return of a Legendary Name

Norton’s new 206-hp V4 superbike is the flagship of the marque’s TVS-backed resurgence…

Some motorcycle names carry more weight than others, and Manx is one of them. For generations of race fans, the name has evoked the Isle of Man, Featherbed frames, privateer glory, single-cylinder racers, and the golden age of British road racing. A Manx Norton was the machine on which countless riders chased trophies, reputations, and immortality around the world’s fastest circuits.

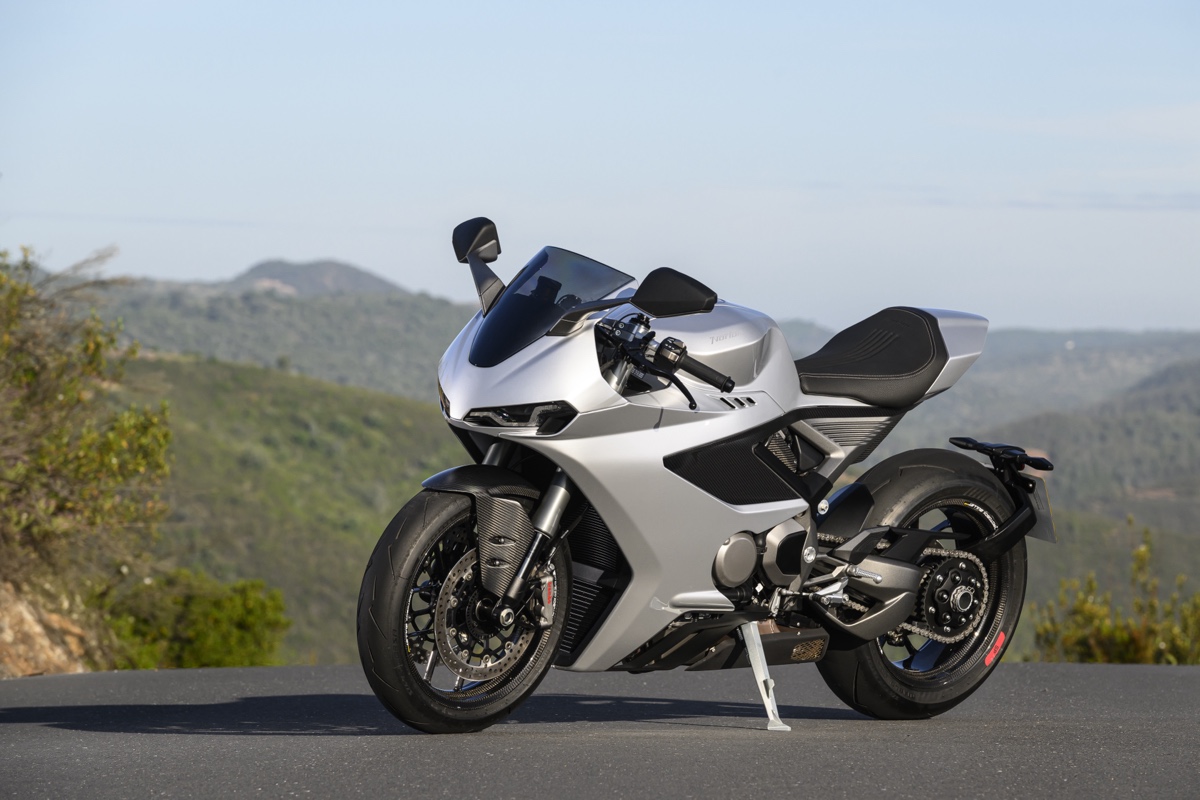

Now Norton is bringing back this storied name. But the new Norton Manx R is no nostalgic single-cylinder café racer, nor a hand-polished retro machine built to trade only on the brand’s past glories. Rather, it’s a modern superbike with a 206-hp V4 engine.

The engine is a 1200cc, 72-degree V4 with 206 hp and 130 Nm (96 ft-lb) of torque, the Manx R features a die-cast aluminum chassis, Brembo brakes, Marzocchi suspension, a Bosch IMU, lean-sensitive electronics, an eight-inch touchscreen dash, and pricing that starts at £20,250 in the UK — less than a Ducati Panigale V4.

In other words, this is Norton’s first truly modern statement under TVS ownership — and perhaps the most important new Norton in decades. For us, the very revival of the Manx name is cause for interest, so we decided to look deeper at the sharp spear of the Norton resurgence.

The Weight of the Manx Name…

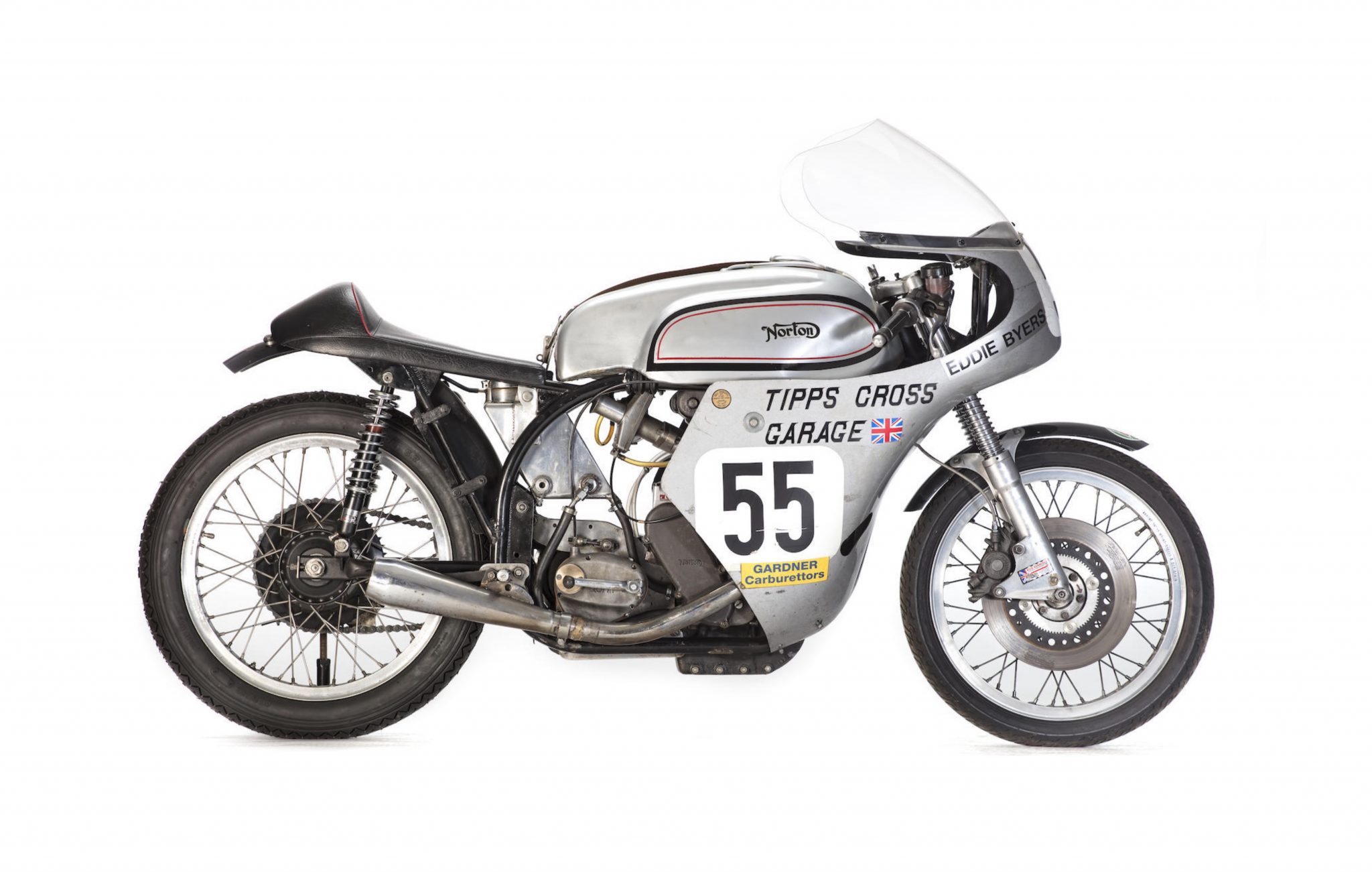

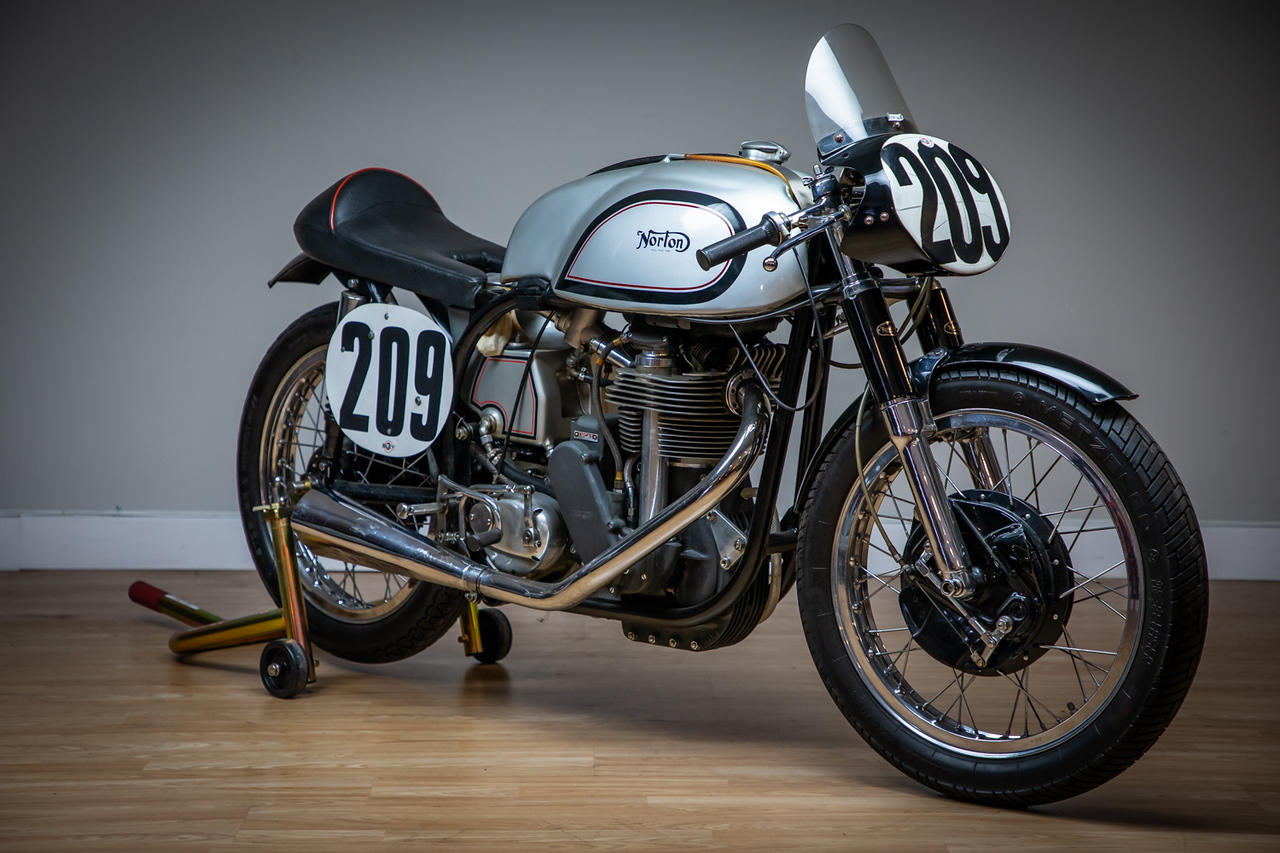

The original Manx Norton was one of the great privateer race motorcycles of the 20th century. Named for Norton’s long association with the Isle of Man TT, the Manx entered production after World War II in 350cc and 500cc form, becoming a dominant force in Grand Prix and road racing. It was simple, elegant, fast, and — crucially — available to privateers. In an era when independent riders could still buy serious machinery and compete at the highest level, the Manx was one of the weapons of choice.

The Featherbed frame, introduced in the 1950s, transformed the Manx into one of the best-handling motorcycles of its age, and the model became inseparable from Norton’s sporting identity. So the decision to revive the Manx name a bold one…

Norton could have played it safe by using the name on a limited-edition retro roadster, polished the cases, stitched the seat, added a few period cues, and called it “heritage” or “neo-classic.” Instead, the new Manx R aims at the modern superbike class, which is a much more difficult proposition…albeit a far more interesting one.

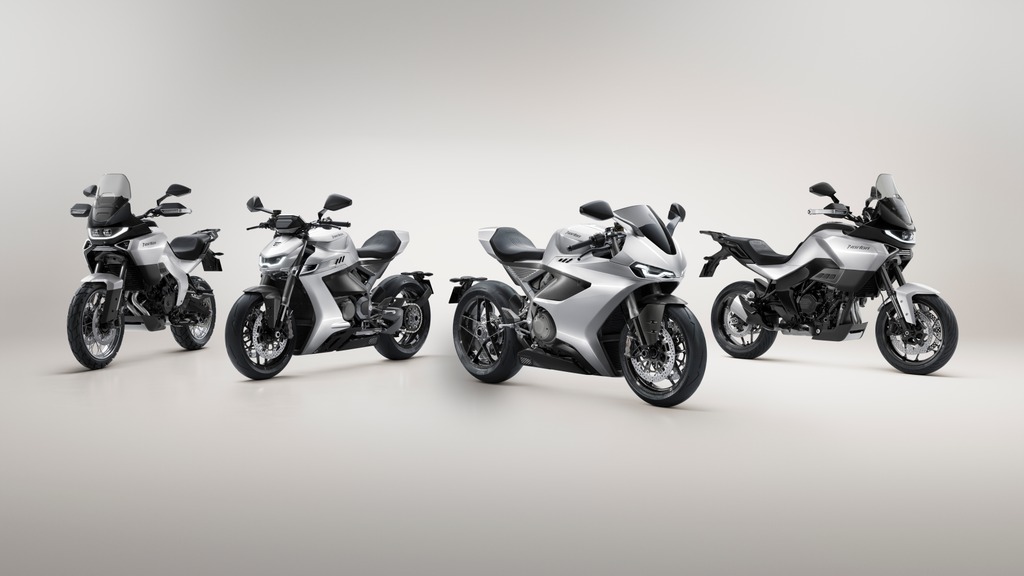

Norton’s TVS-Era Resurgence

Norton’s recent history has been turbulent, to put it mildly. After years of false starts, boutique production, troubled ownership, and controversy, the company entered a new chapter in 2020 when TVS Motor Company acquired the brand. Since then, TVS has invested heavily in Norton, building a new global headquarters and manufacturing facility in Solihull and repositioning the marque for a more serious, sustainable future.

The Manx R is the flagship of that effort. Norton describes the bike as the first model launched under its “Resurgence” plan. This is not merely a continuation of the old V4SV in new clothes. The Manx R uses an all-new 72-degree V4 powertrain, new chassis, new electronics, new styling language, and a new model strategy built around four specification levels.

The company’s challenge is enormous. Norton doesn’t just have to build a new superbike — they have to rebuild trust in the entire brand. That means the Manx R has to do more than look good at a show. It has to be engineered, supported, priced, warrantied, and delivered like a real production motorcycle from a serious manufacturer. That’s where TVS’s backing could make the difference.

The Engine: 1200cc 72° V4

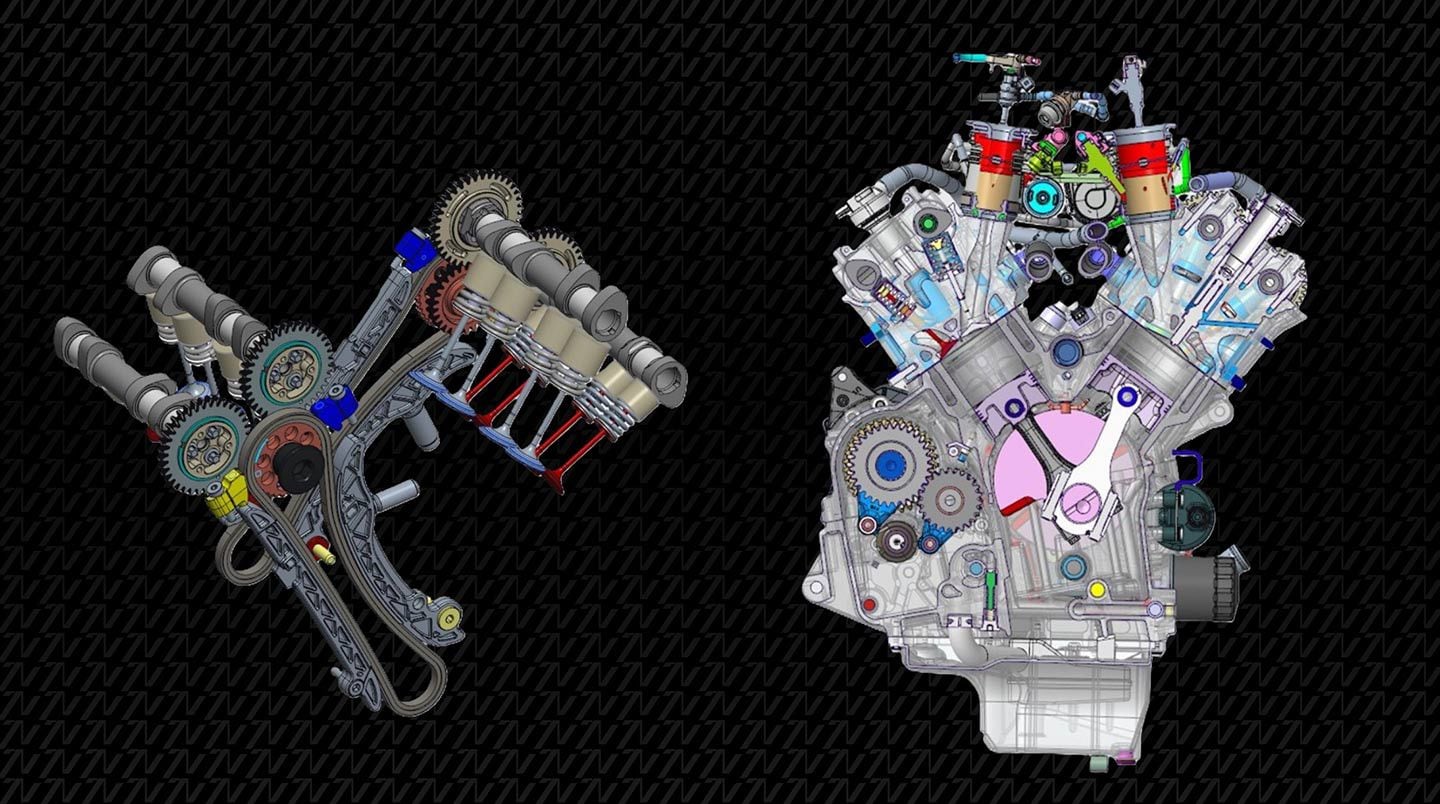

At the heart of the Manx R is the company’s all-new 1200cc, 72-degree liquid-cooled V4. Norton claims 206 hp at 11,500 rpm and 130 Nm / 96 lb-ft of torque at 9,000 rpm. Just as importantly, the company says 75% of that torque is available from just 5,000 rpm.

In a world where top-tier superbikes from Ducati, BMW, Aprilia, and Kawasaki all produce 200+ hp, that 206-bhp figure isn’t anything to write home about. Norton’s pitch, however, is slightly different, with a greater focus on torque, response, sound, road usability, and connection.

The engine uses chain-driven cams with an idler gear to reduce overall engine height, titanium inlet valves, and multi-point sequential fuel injection with eight injectors. Ride-by-wire throttle control allows independent input to the front and rear cylinder banks, giving the electronics system a high degree of control over delivery and feel.

The gearbox is a six-speed unit with a bi-directional up/down quickshifter, while the clutch is a cable-operated assist-and-slip multi-plate wet clutch. Final drive is by 525 X-ring chain. It’s a modern superbike powertrain, but the emphasis is not just numbers. Norton is trying to give the Manx R a distinct power delivery — something muscular, responsive, and usable, rather than merely explosive.

Built Around Feel…

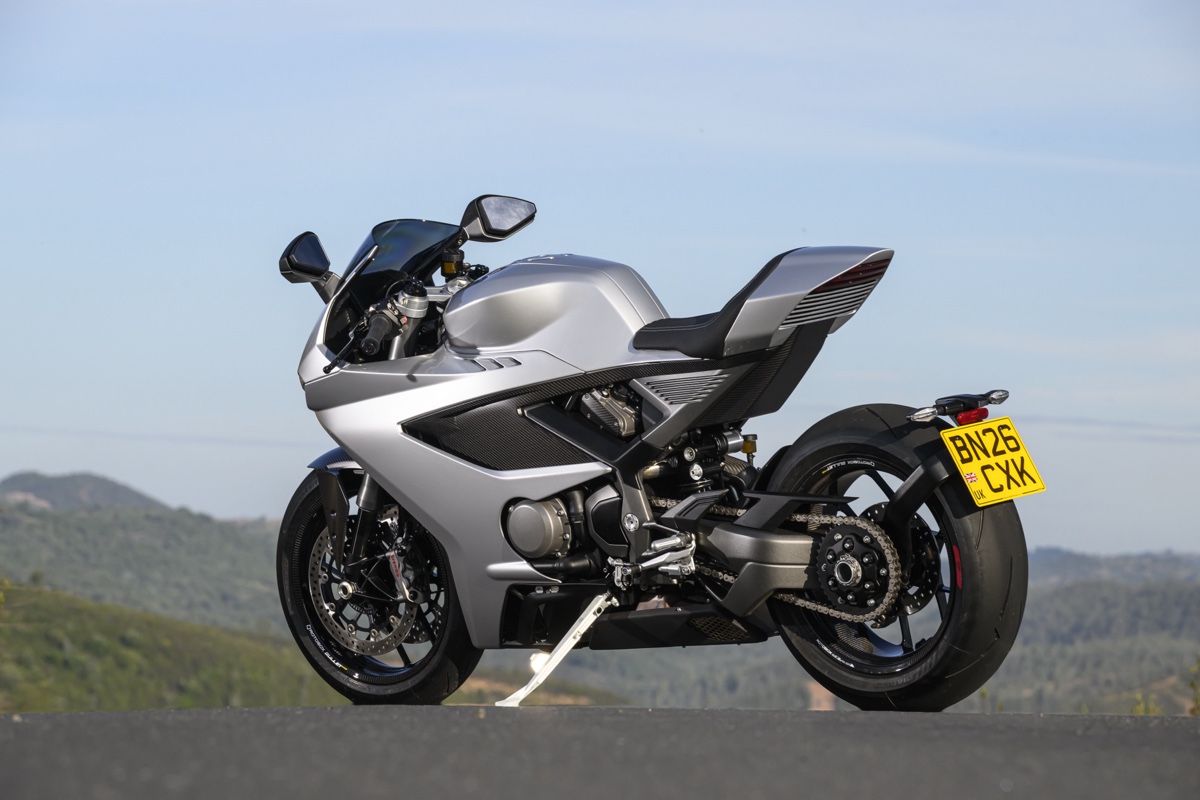

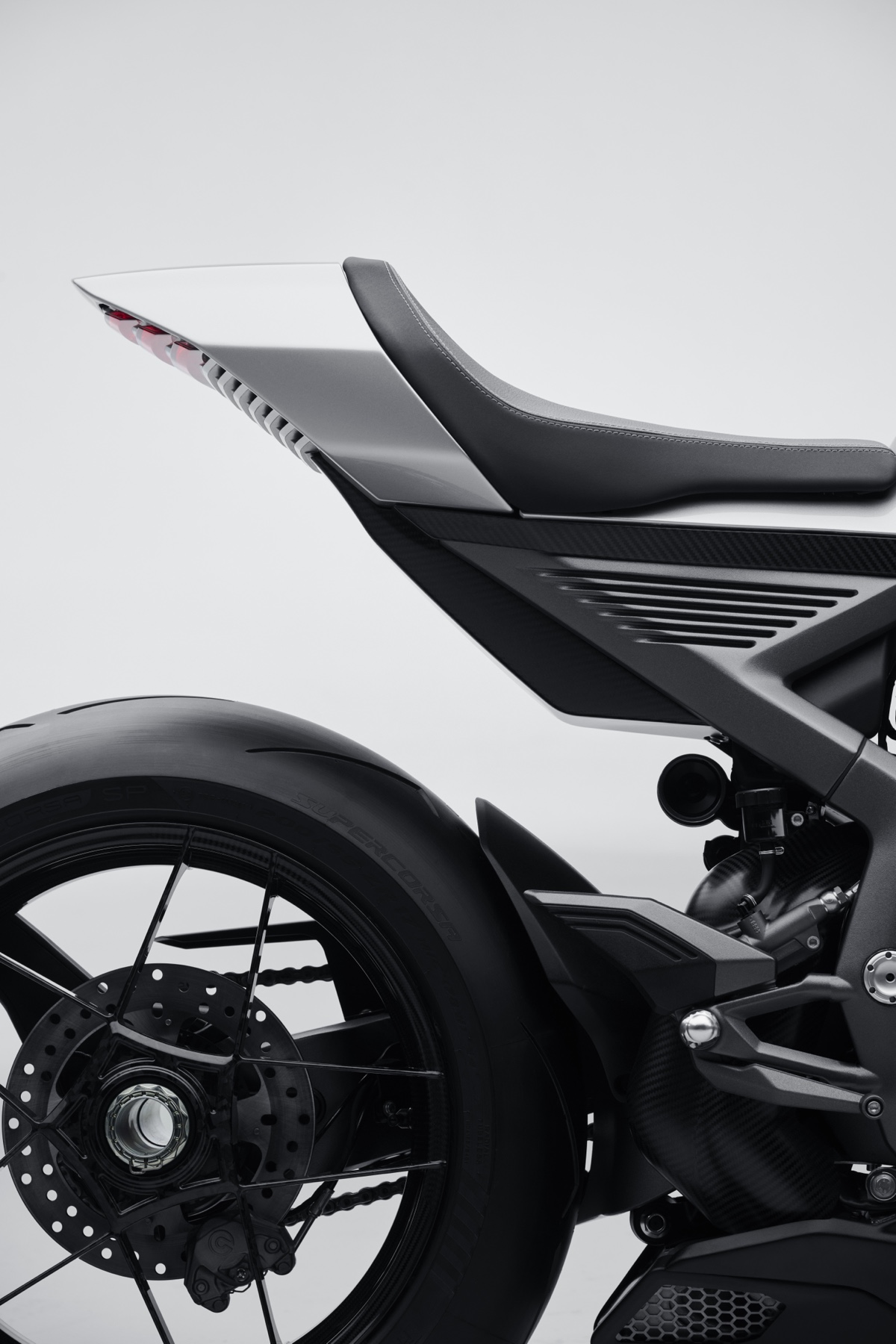

The Manx R uses a die-cast aluminum frame and single-sided die-cast aluminum swingarm. Norton says the all-new chassis was designed to provide the right balance of lateral and torsional flex, aiming for rider feel rather than absolute stiffness for its own sake.

The base Manx R gets fully adjustable Marzocchi suspension with passive damping: 45mm USD forks up front and a rear monoshock. The Apex, Signature, and First Edition models step up to electronically adjustable semi-active Marzocchi suspension, with DLC-coated fork inners on the higher trims.

Braking hardware is serious across the range: twin 320mm front discs with radially mounted Brembo Hypure four-piston calipers, backed by Bosch Cornering ABS EVO. The rear uses a 245mm disc with a two-piston caliper.

Wheel spec varies by trim. The base bike uses cast aluminum wheels, the Apex uses OZ Racing forged aluminum wheels, and the Signature / First Edition bikes get Rotobox Bullet Pro carbon-fiber wheels. Tires are Pirelli Diablo Supercorsa SP V4s in 120/70 ZR17 front and 200/55 ZR17 rear sizes.

The base Manx R is listed at 210 kg wet without fuel, while the higher-spec versions shed weight: 207 kg for the Apex, 203 kg for the Signature, and 201 kg for the First Edition.

Electronics for the Modern Superbiker…

If the original Manx was a pure mechanical racing tool, the new Manx R is a very modern superbike. The electronics package is built around a Bosch 10.3ME six-axis IMU and includes traction control, wheelie control, rear slide control, rear lift control, drag torque control, launch control, electronic combined braking, vehicle hold control, and lean-sensitive ABS. Overall, there are five ride modes: Rain, Road, Sport, Track 1, and Track 2.

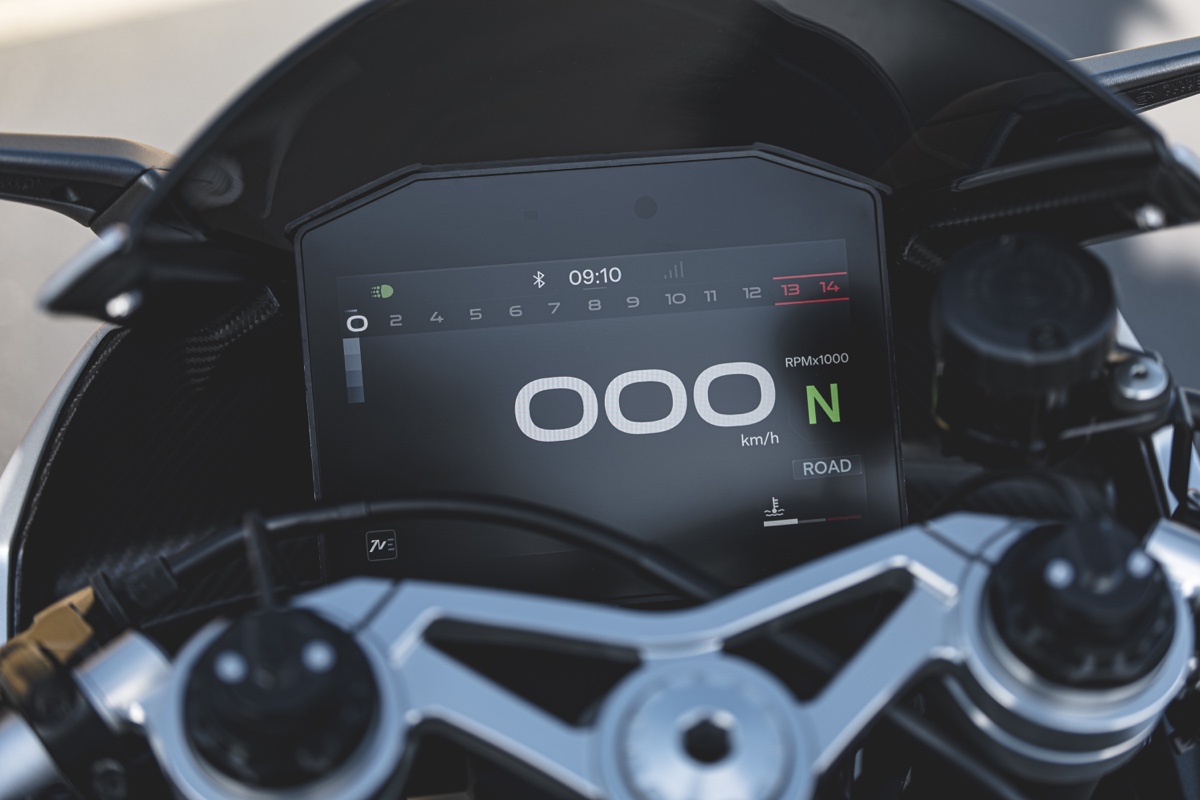

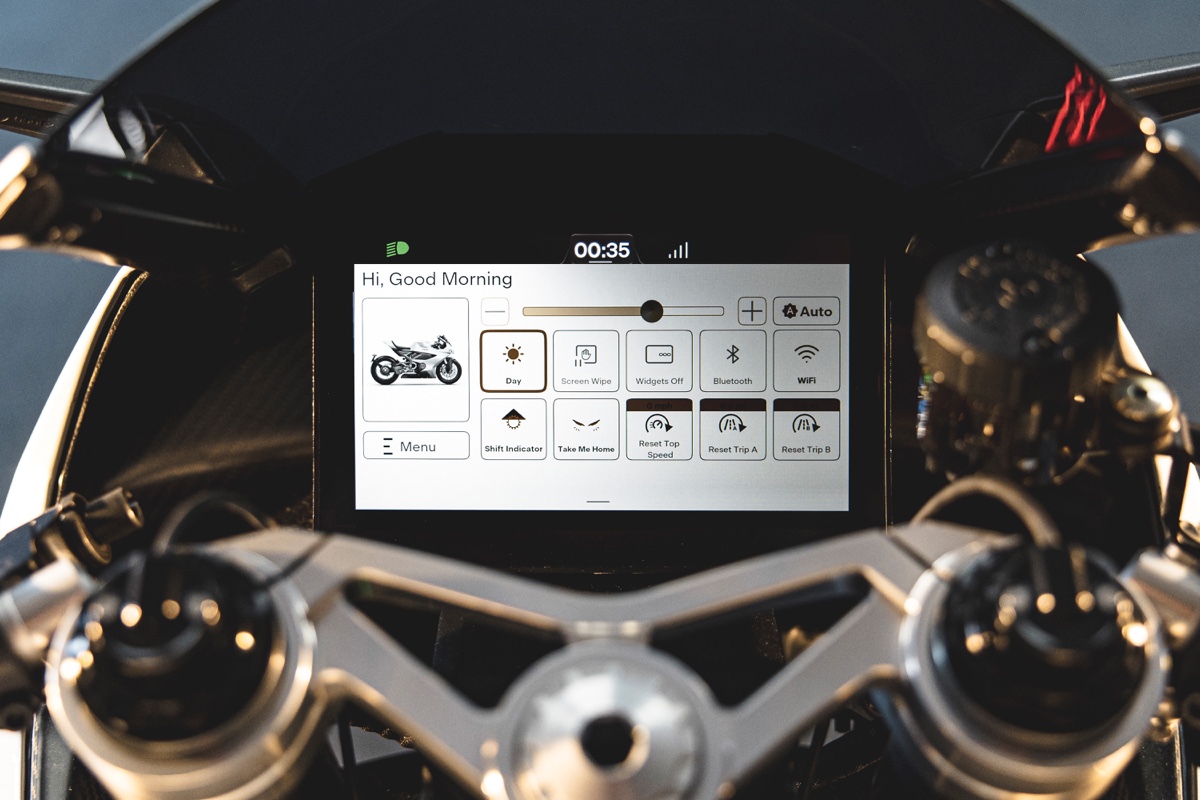

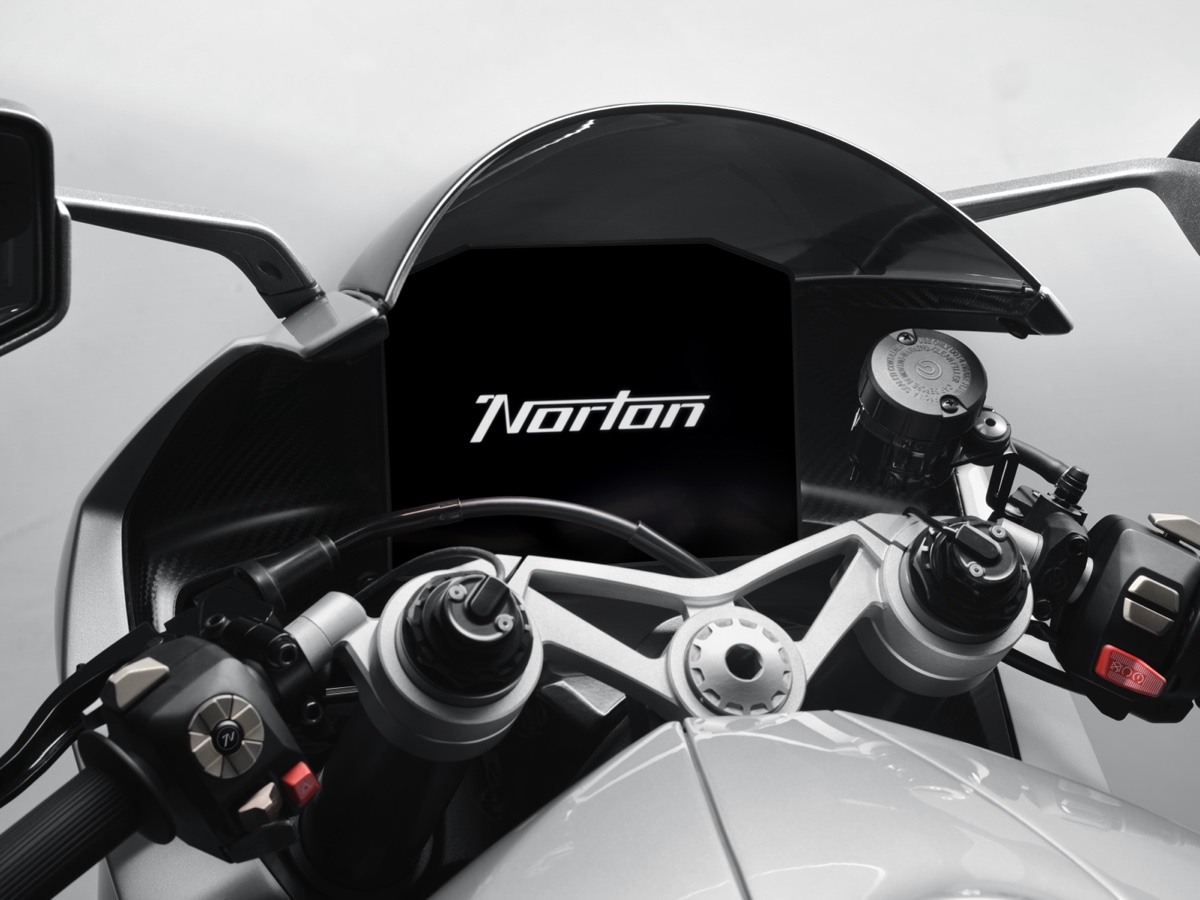

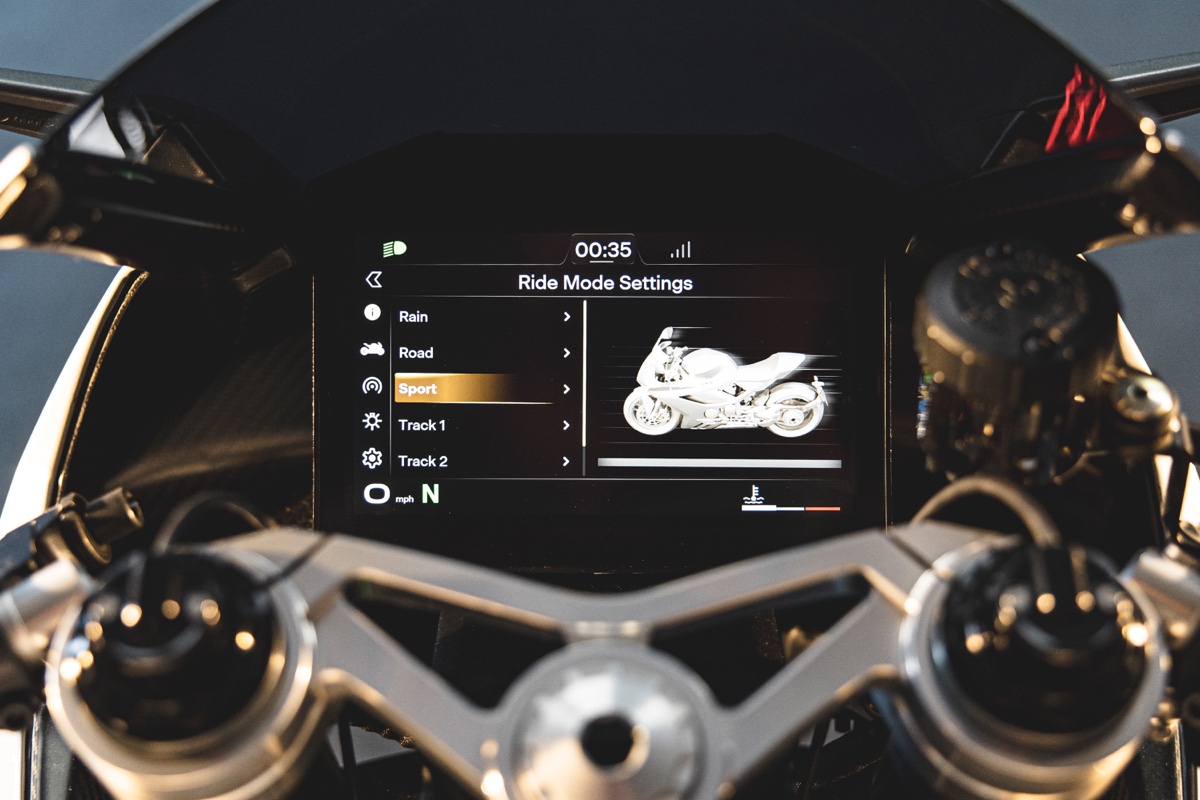

The dash is an eight-inch full-color touchscreen TFT with Bluetooth and Wi-Fi connectivity, navigation control, music and call functions, GoPro control, over-the-air software and firmware updates, ride telematics, and integration with the Norton Rider app. That’s a long way from a tachometer, an oil light, and a pair of Smiths clocks.

We’re not huge fans of today’s ride-by-wire throttles and dizzying arsenal of rider aides, but if Norton wants to compete in the premium superbike space, riders expect sophisticated electronics, connectivity, adjustable behavior, and track-ready control systems.

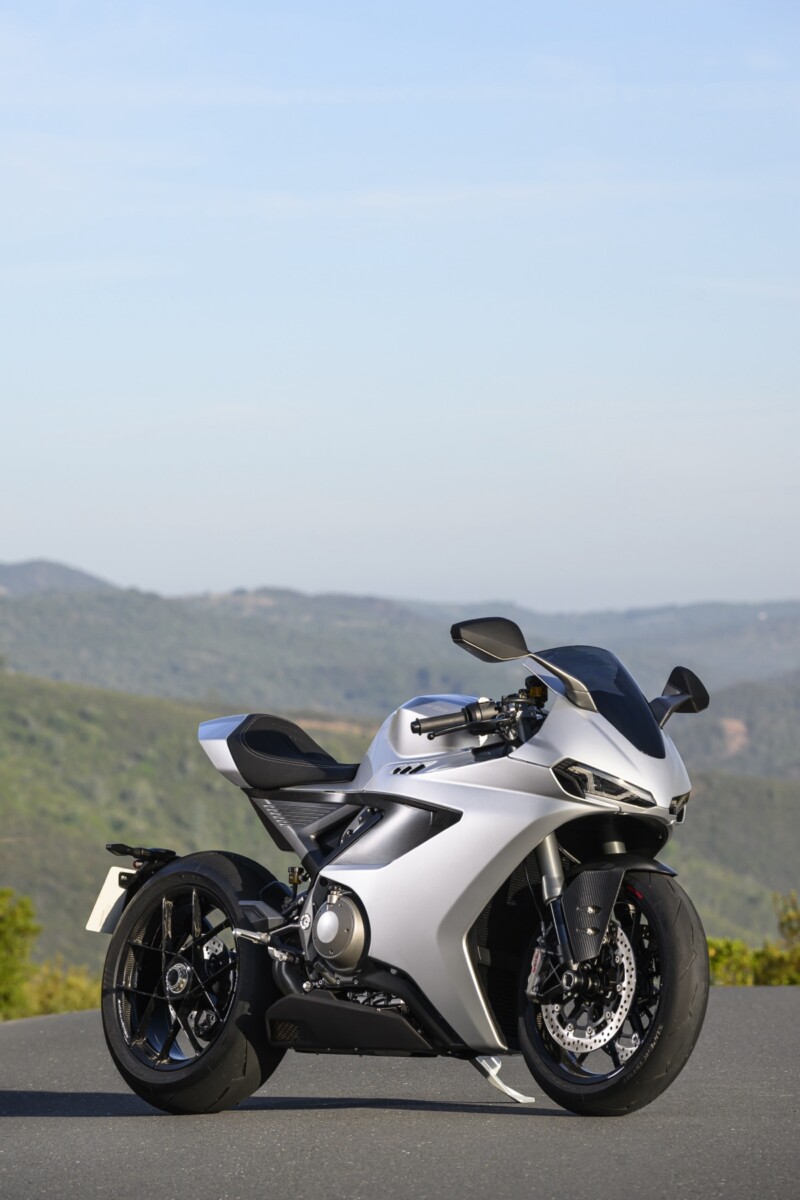

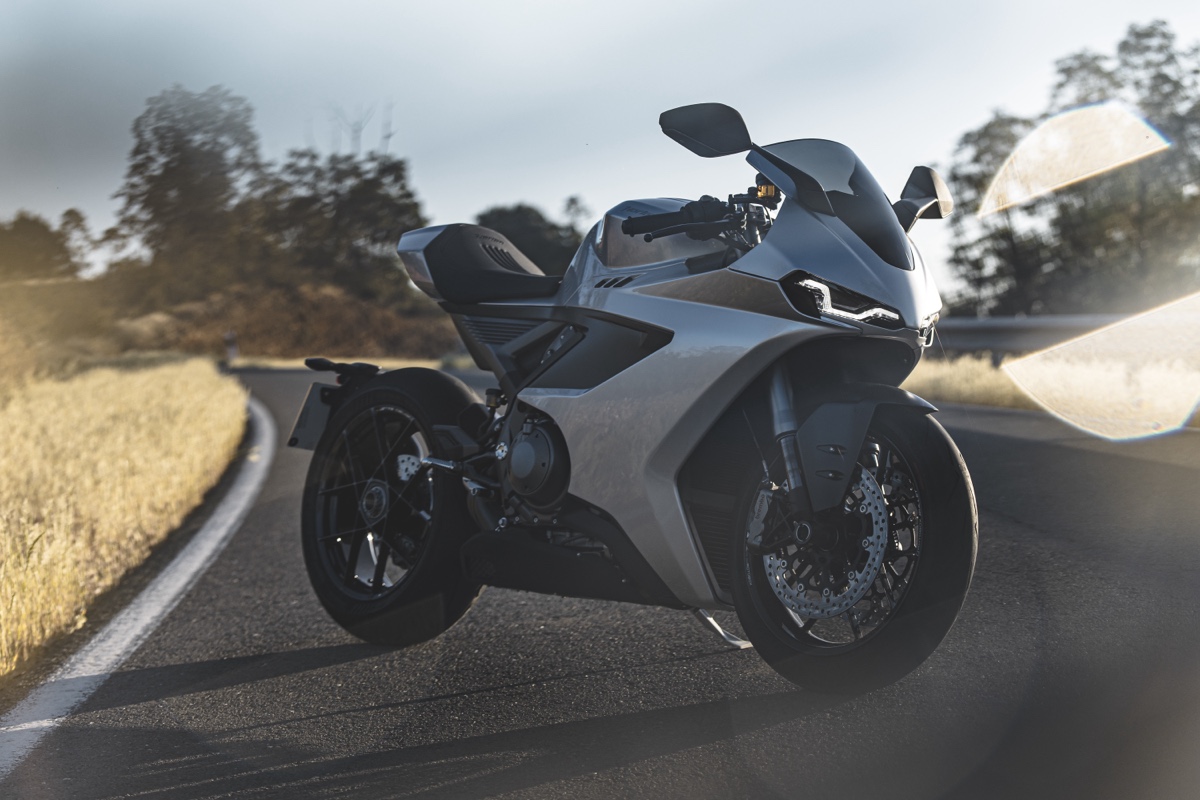

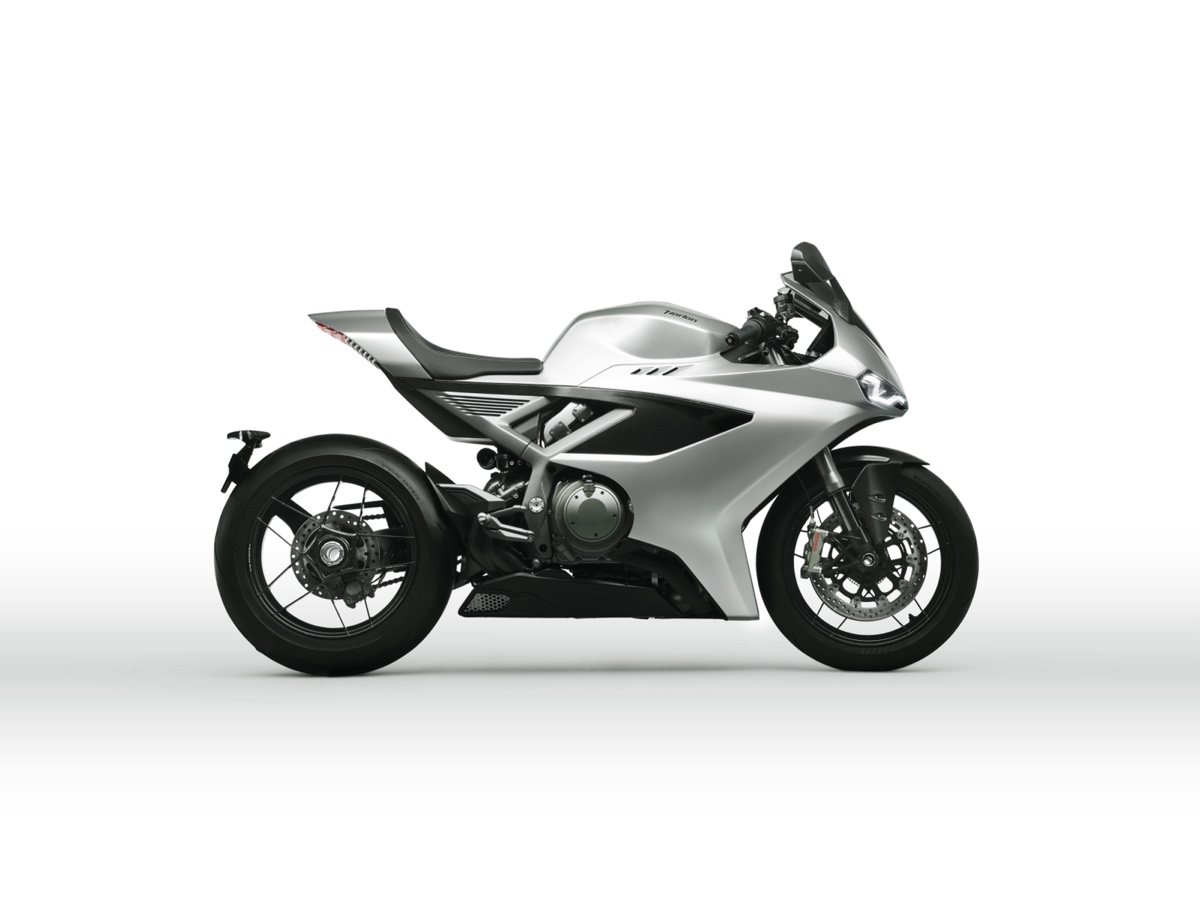

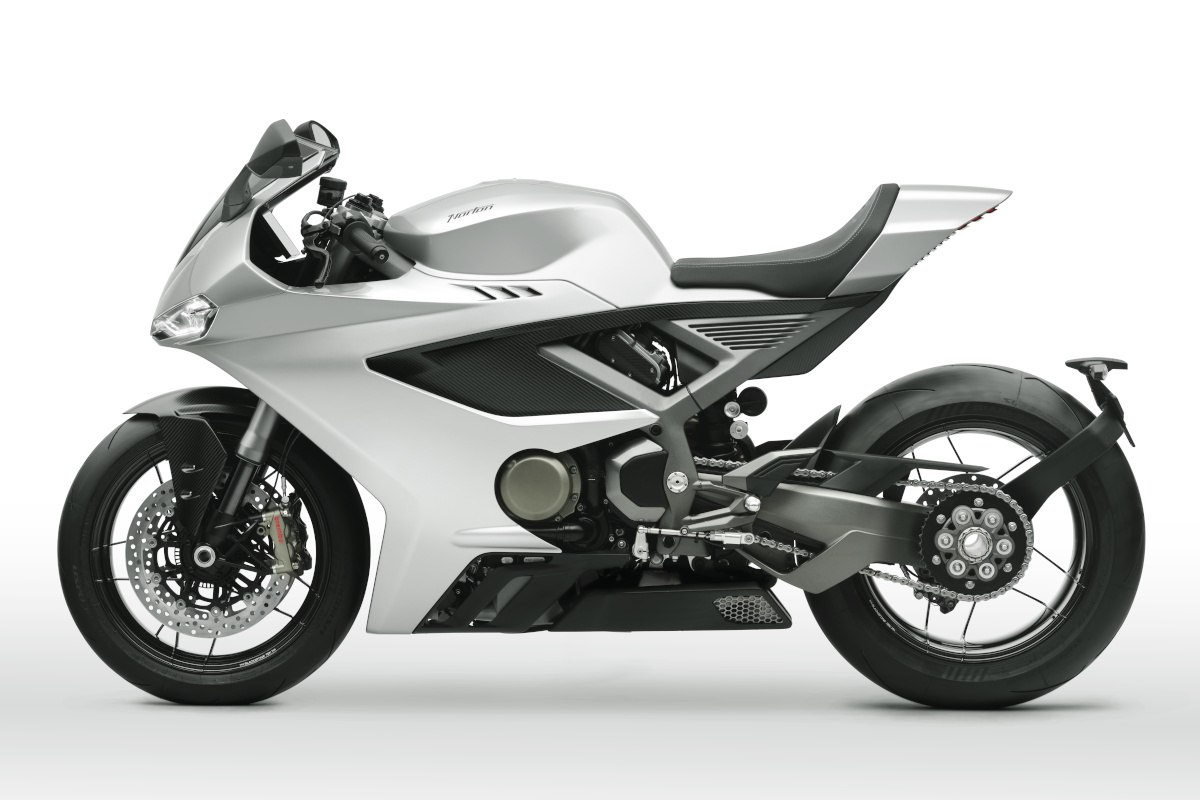

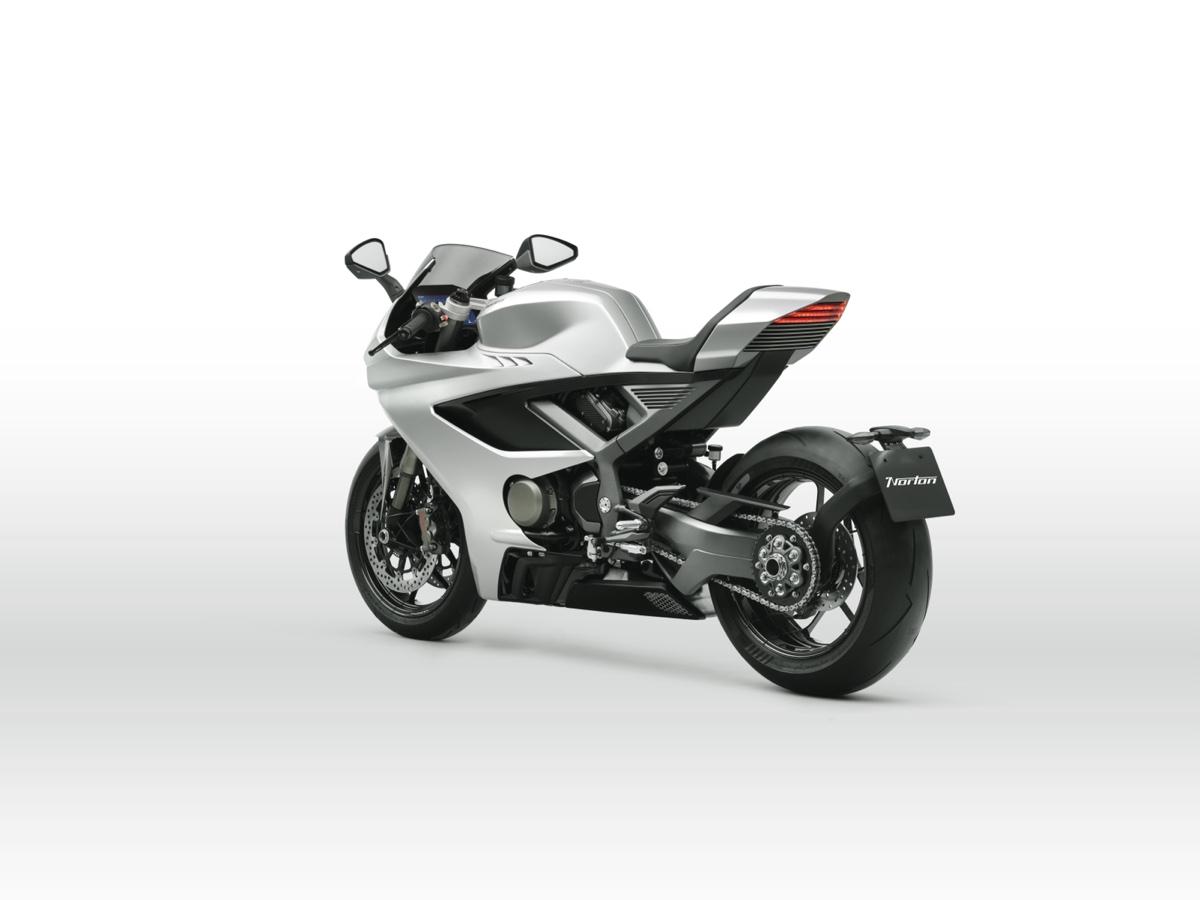

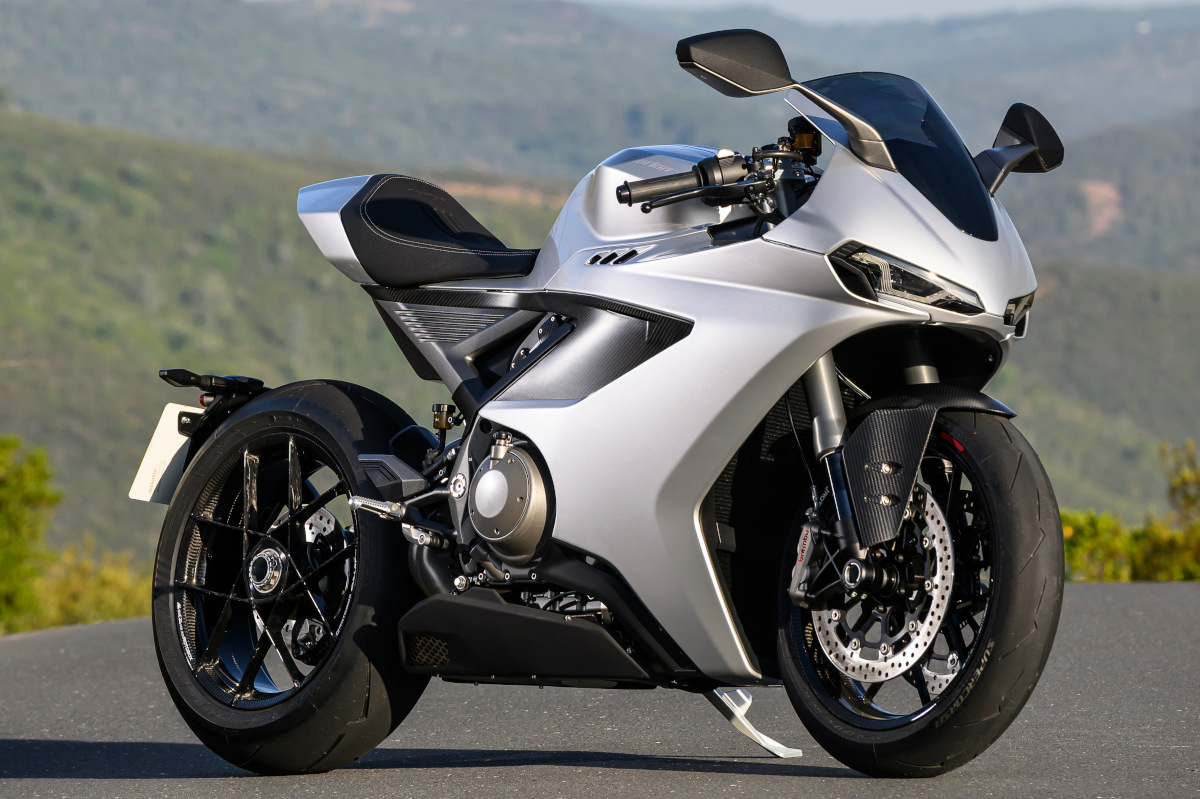

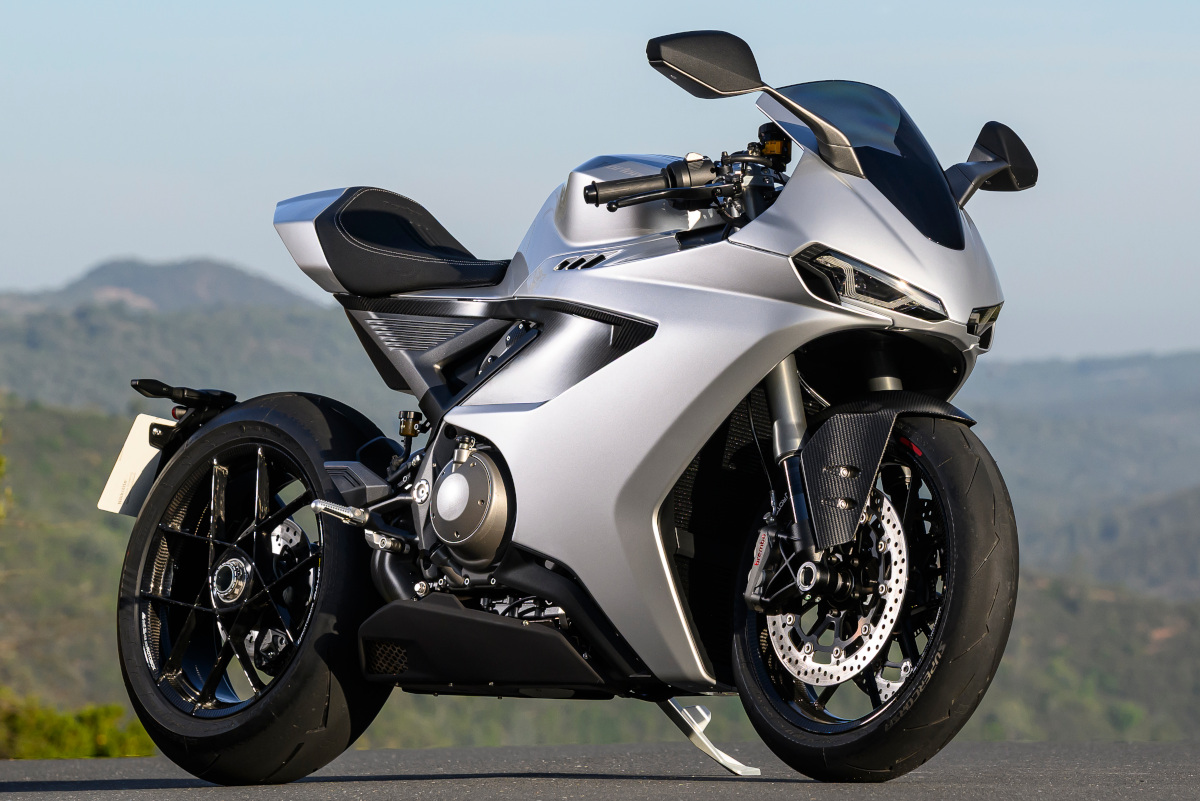

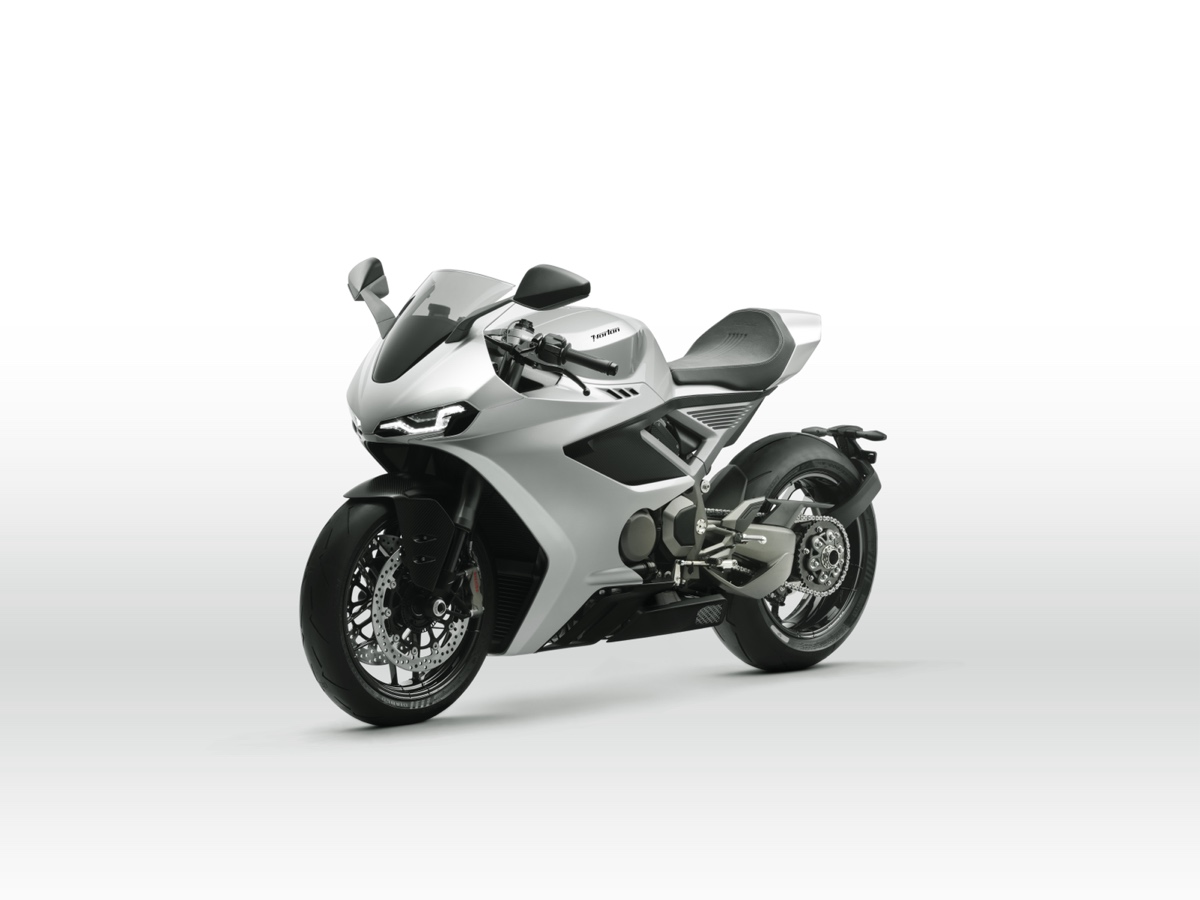

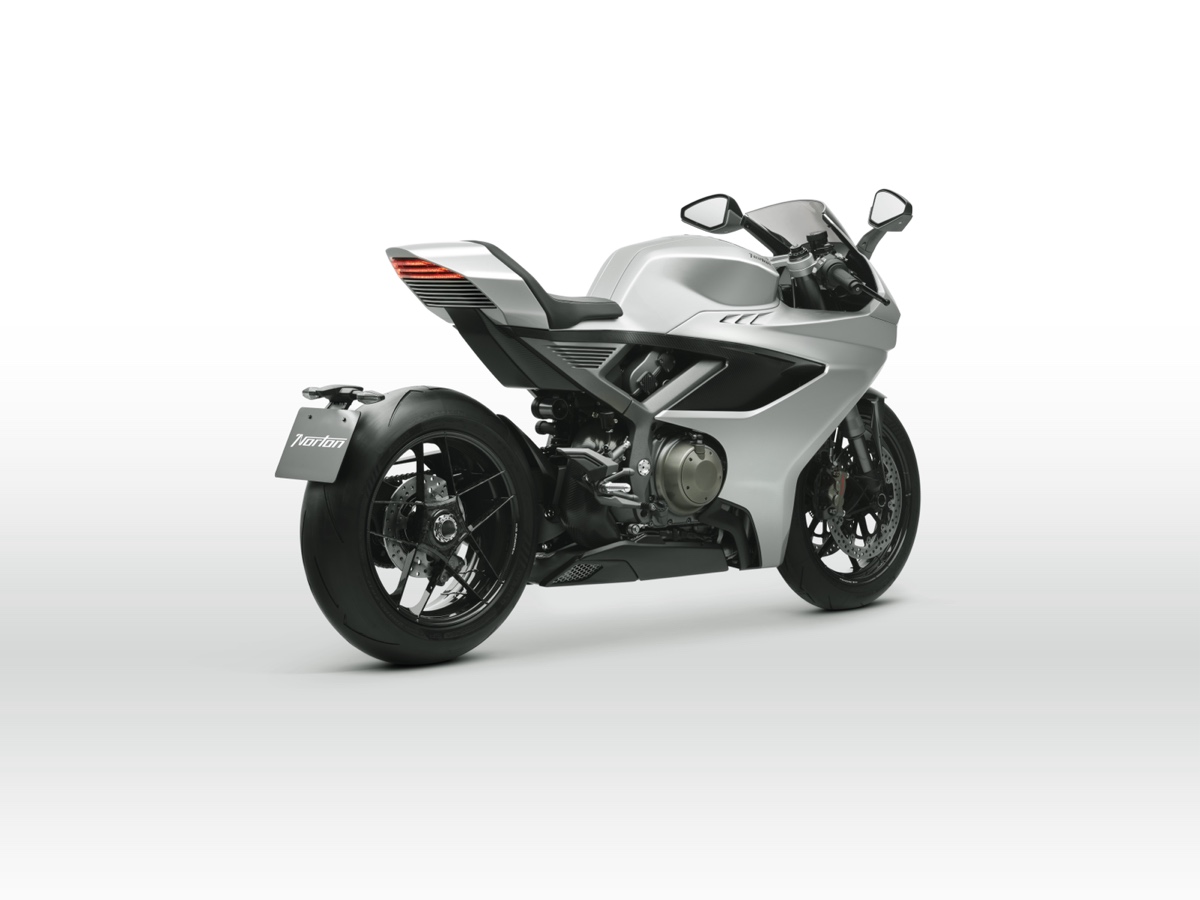

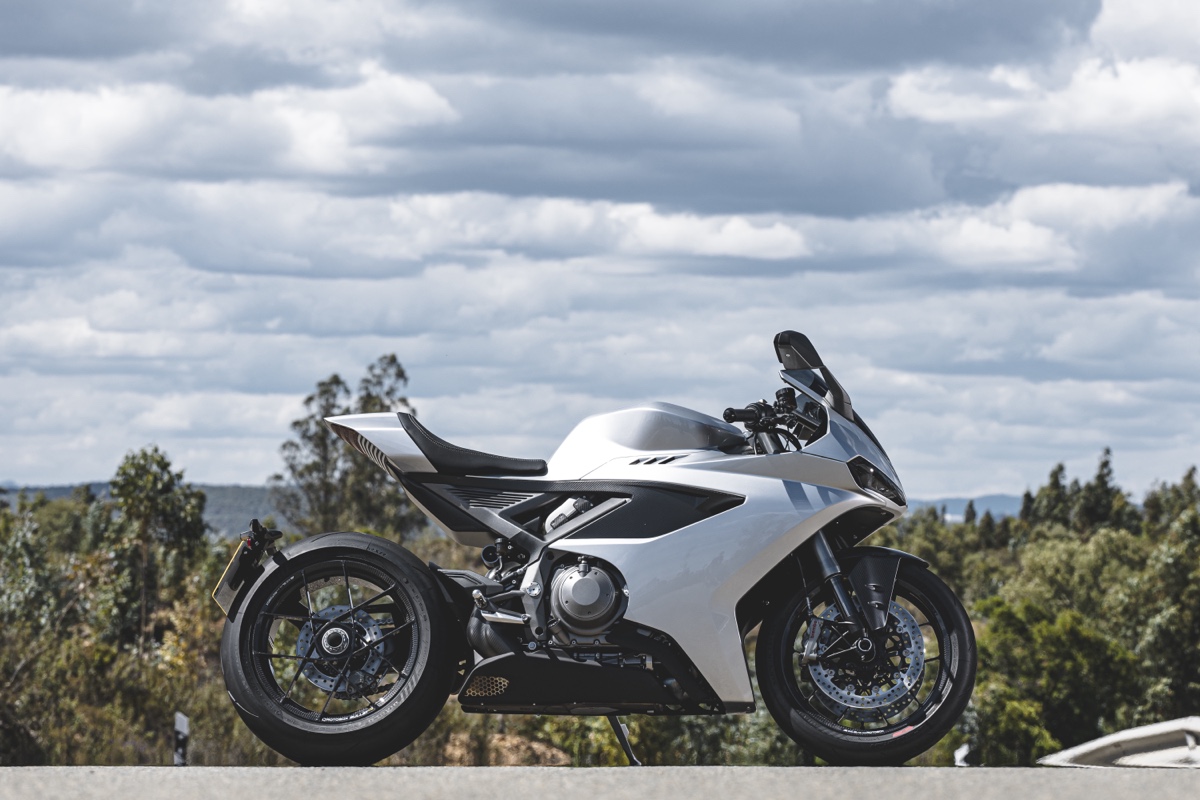

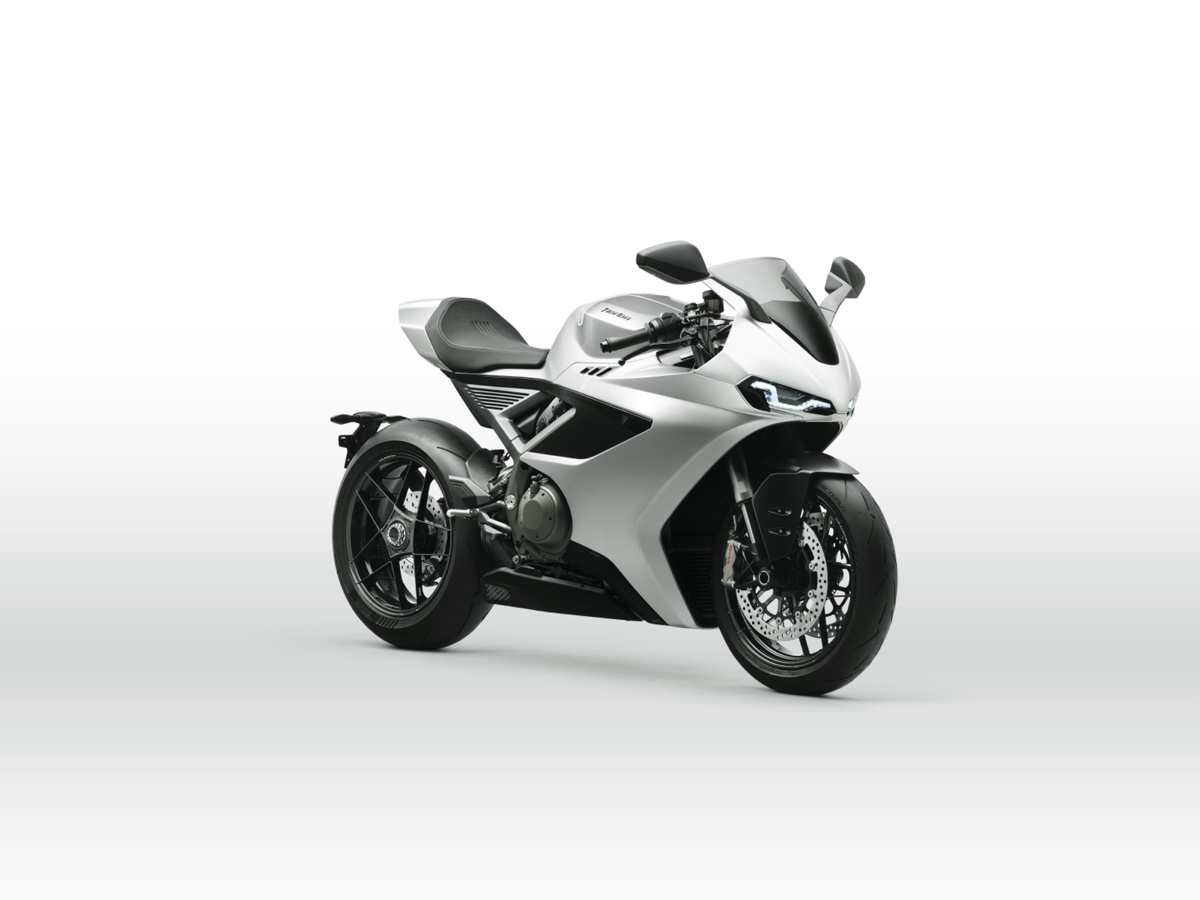

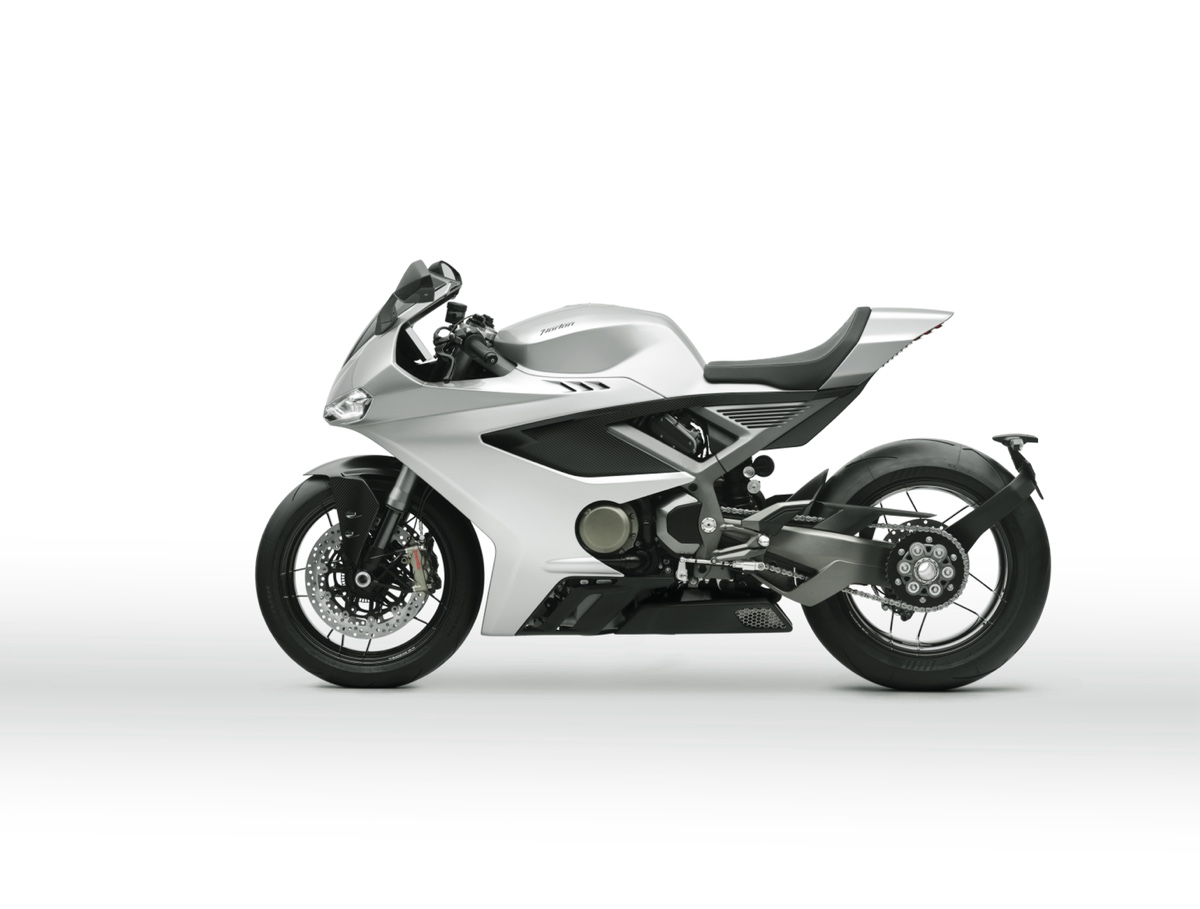

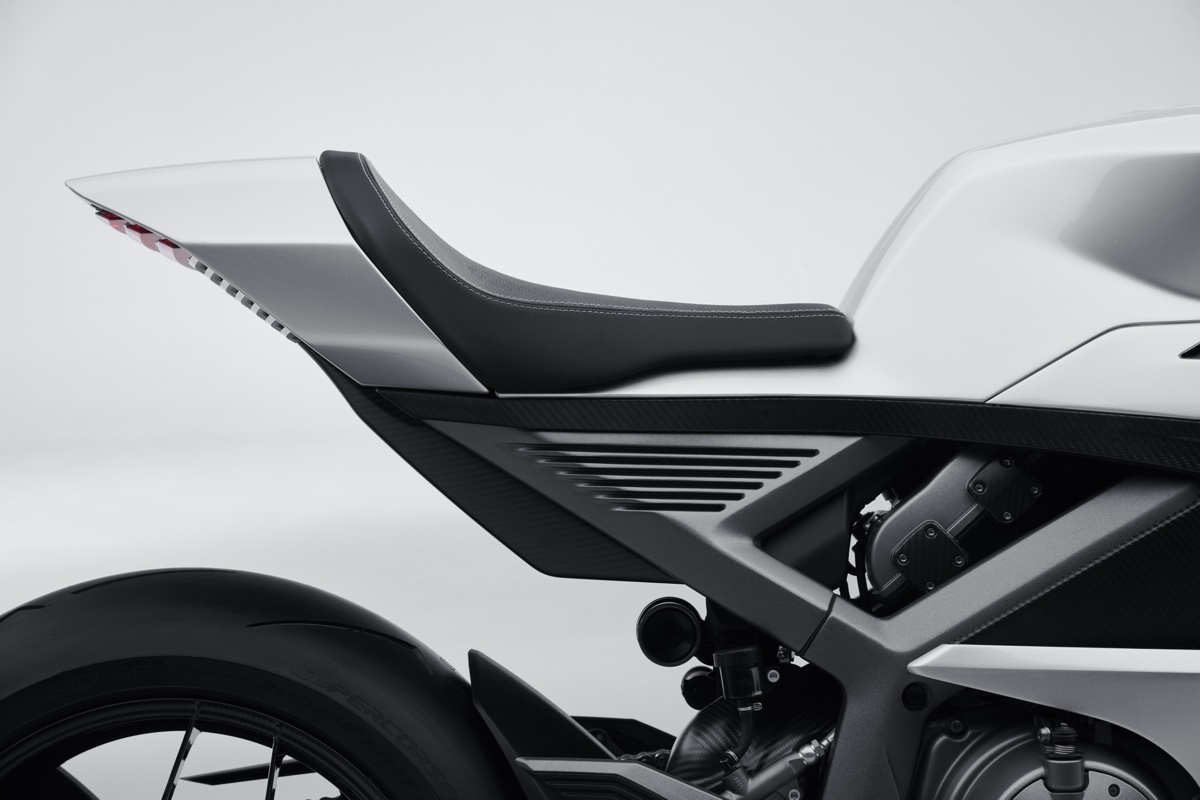

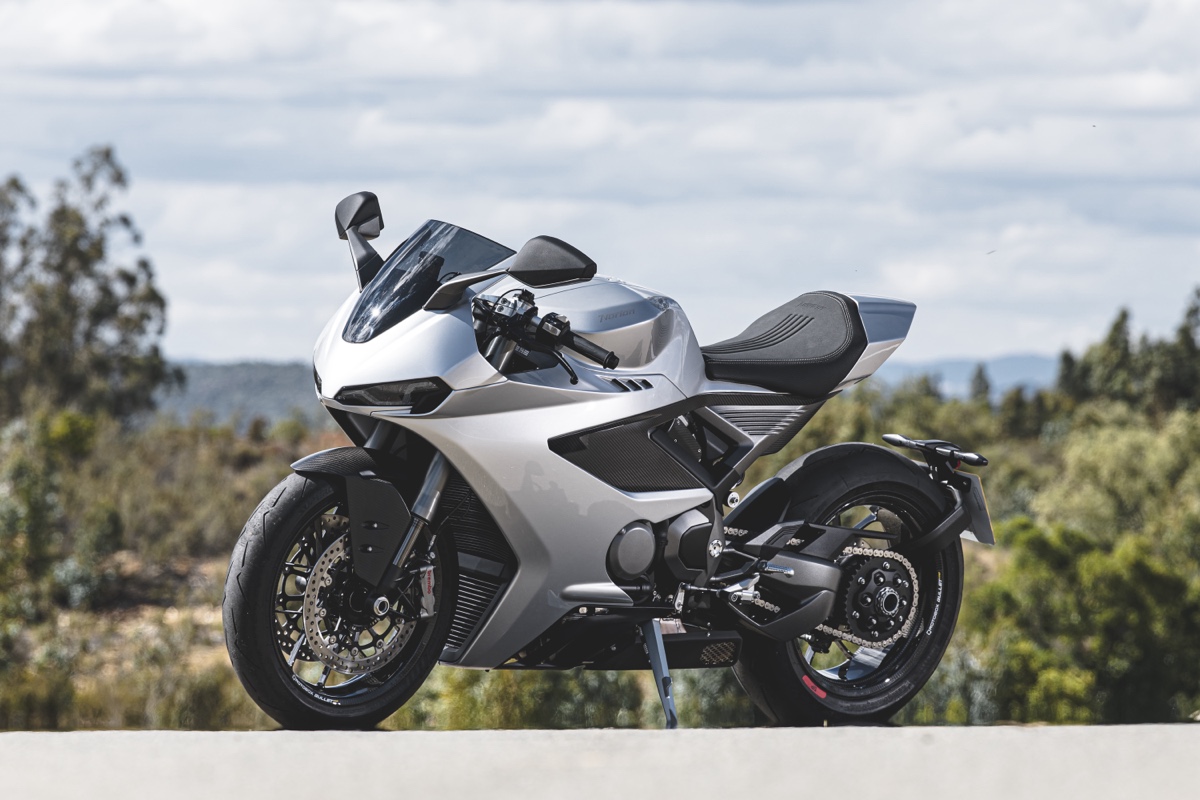

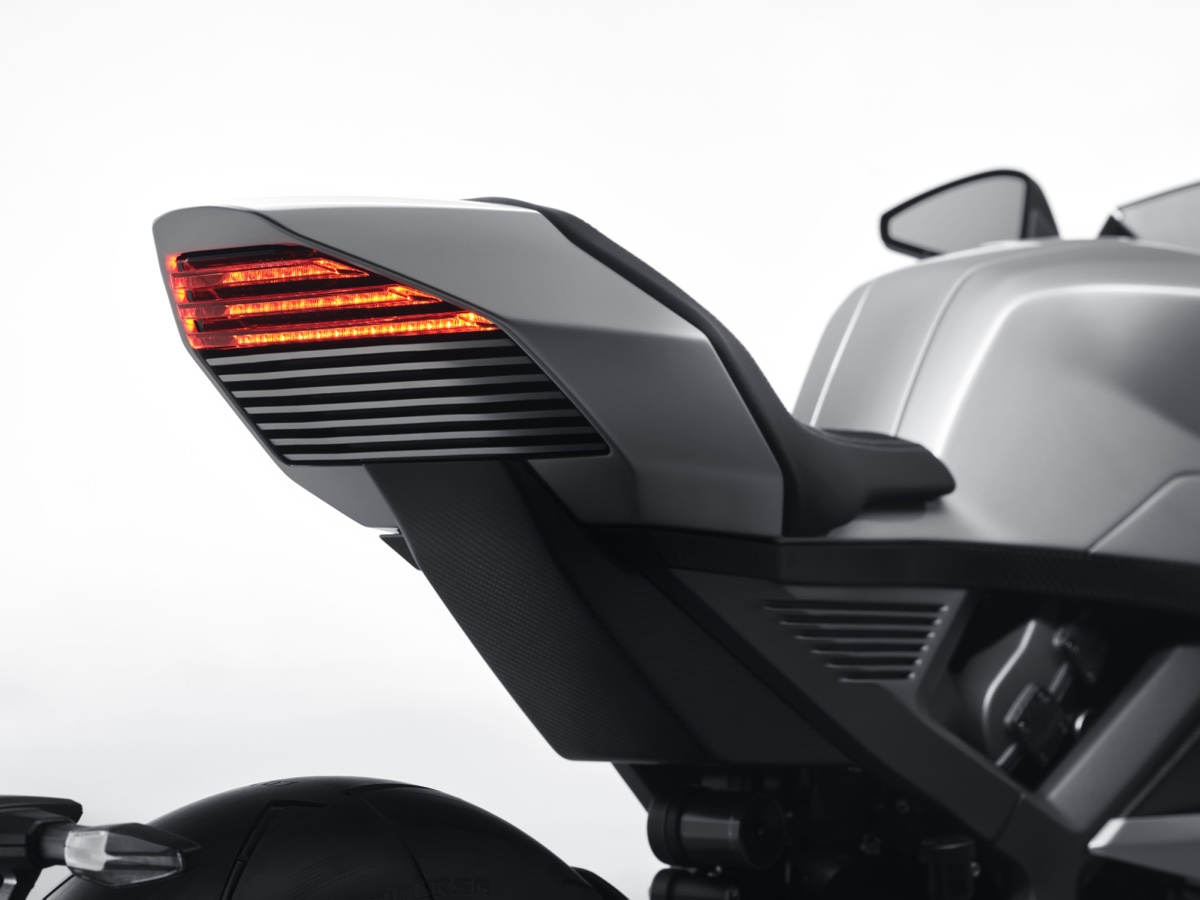

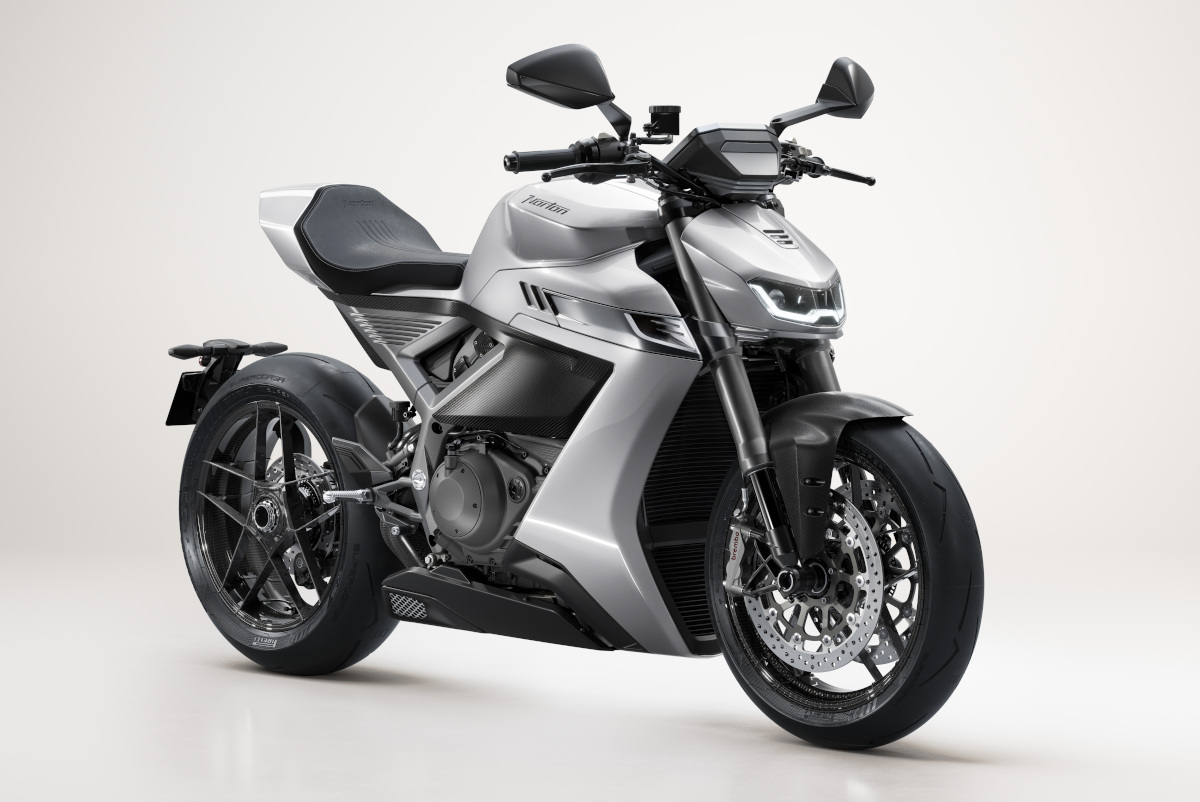

Design: Handsome, Not Sentimental

Possibly the most interesting thing about the Manx R’s styling is that it doesn’t seem to look backward in any obvious way. No fake cooling fins, no round headlight, no polished alloy tank, no sepia-toned nostalgia. Instead, the bike has a sharp, modern shape: twin LED headlights, tight bodywork, an under-slung exhaust, and a compact tail.

That may actually divide people, especially those looking for a more obvious visual connection to the Manx Nortons of old. Of course, the original Manx was not retro in its day — it was a serious racing motorcycle. If Norton really wants the Manx name to mean something in the 21st century, perhaps this is the best path, moving boldly forward rather than merely imitating what worked decades ago.

Rider Impression

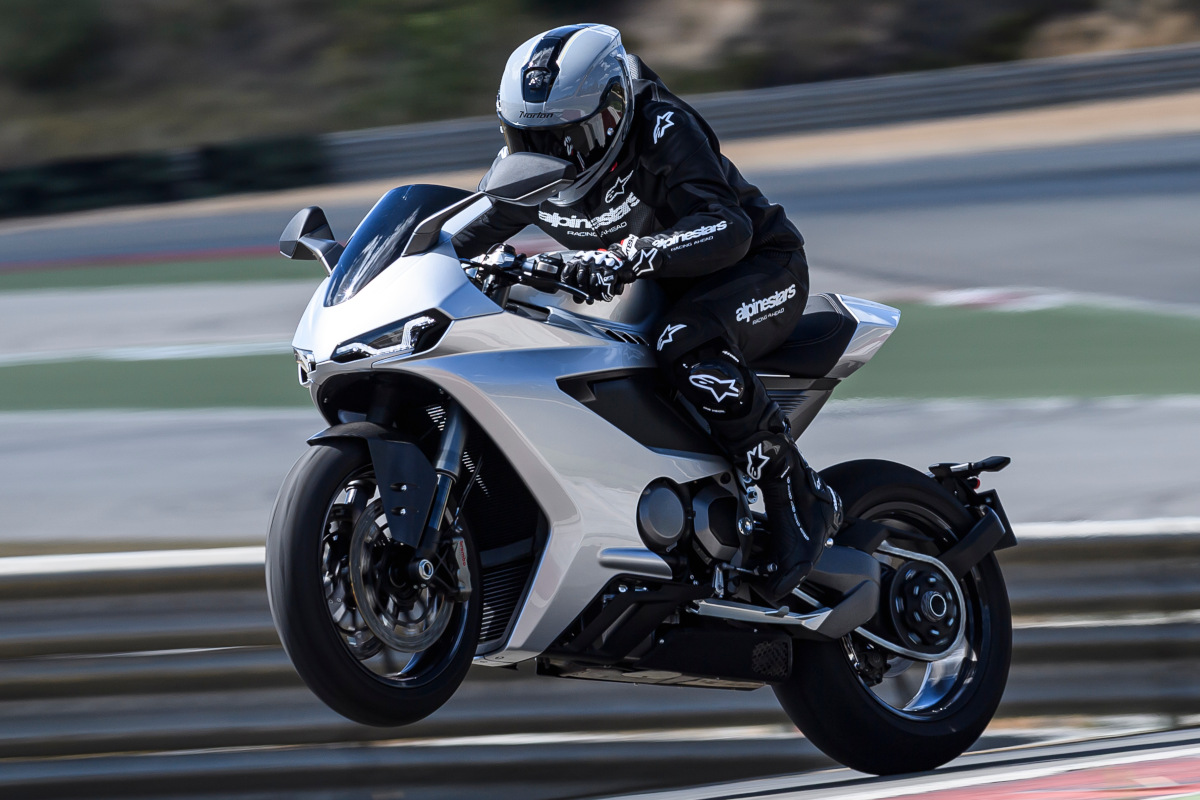

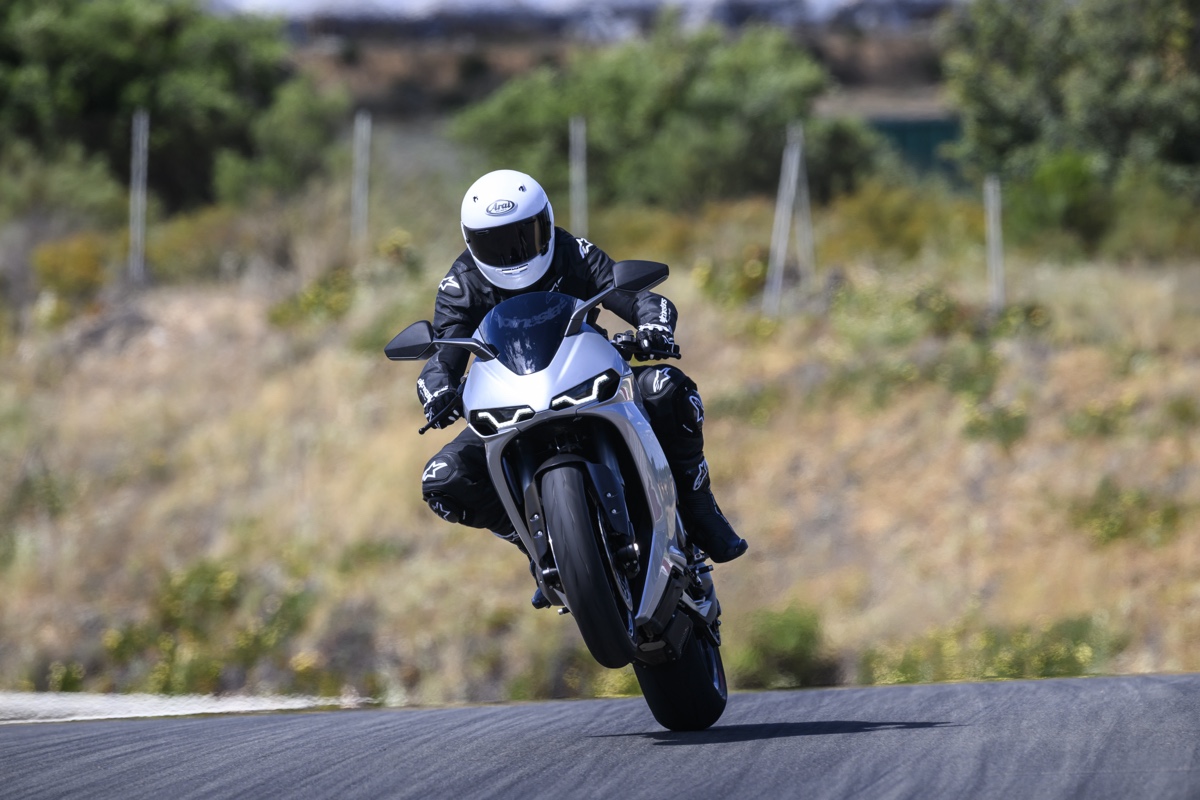

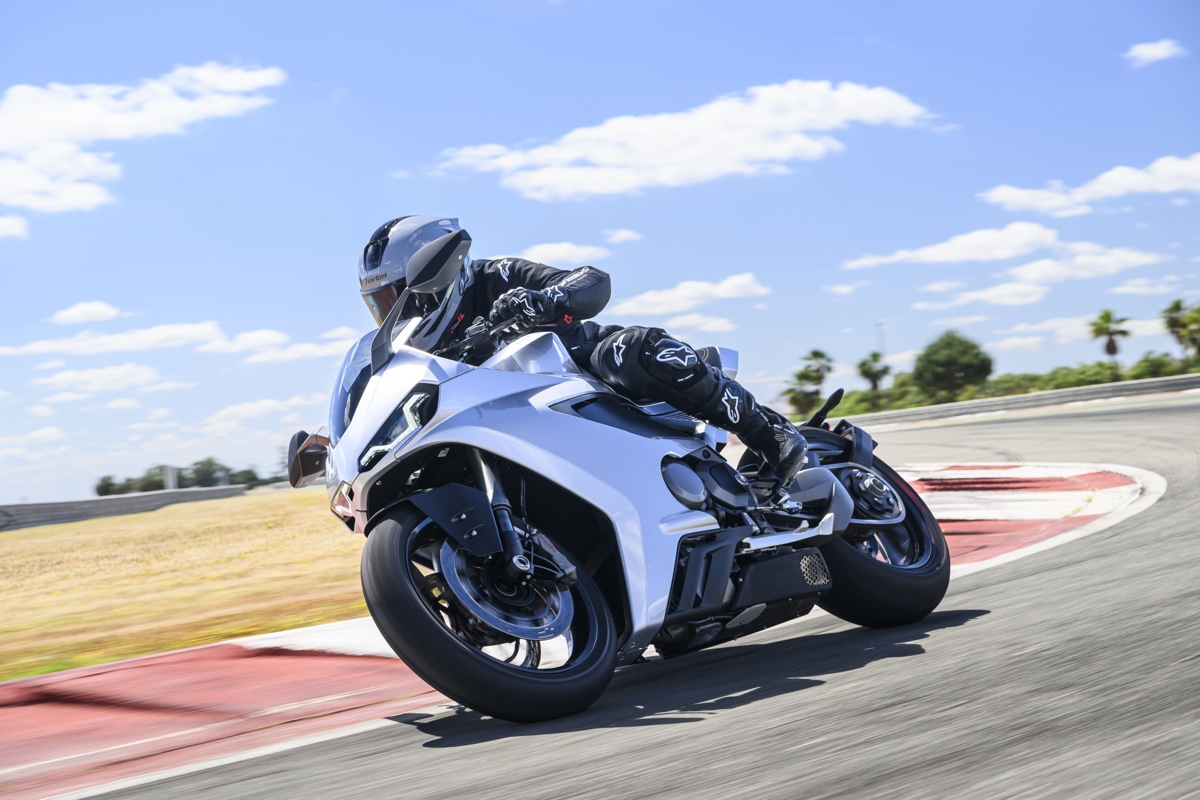

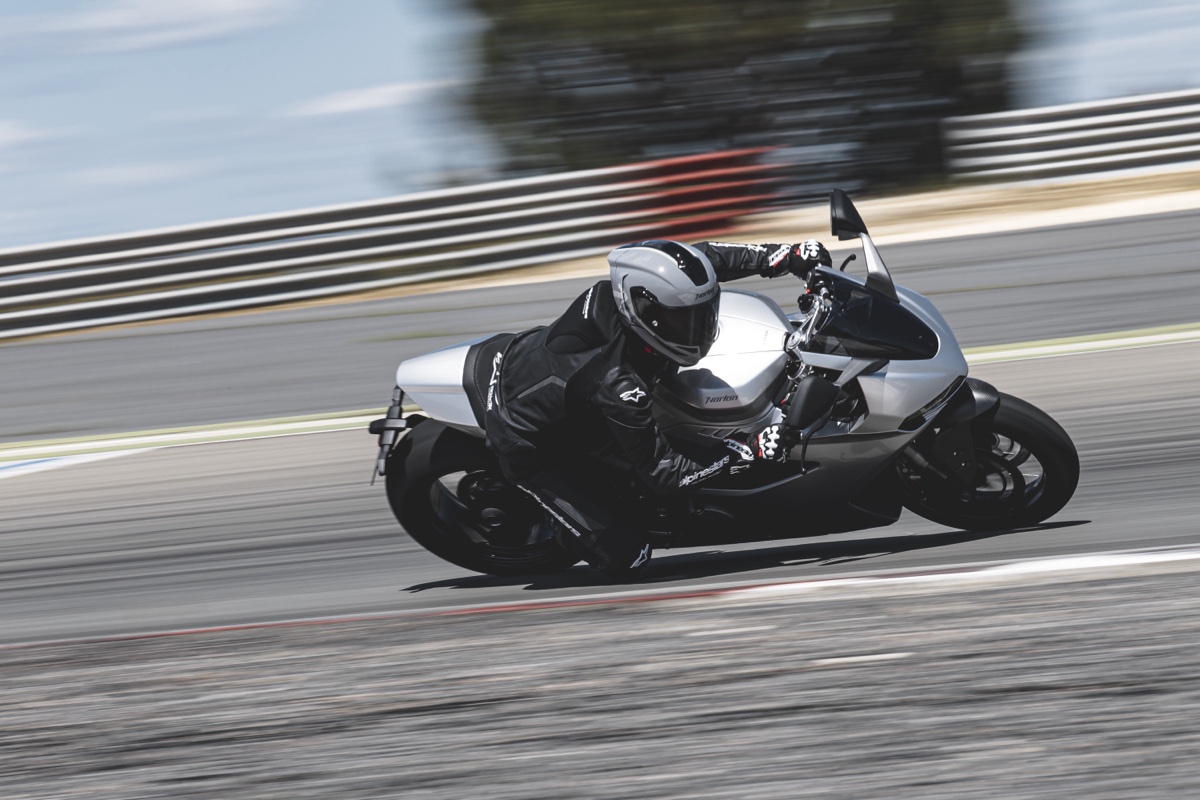

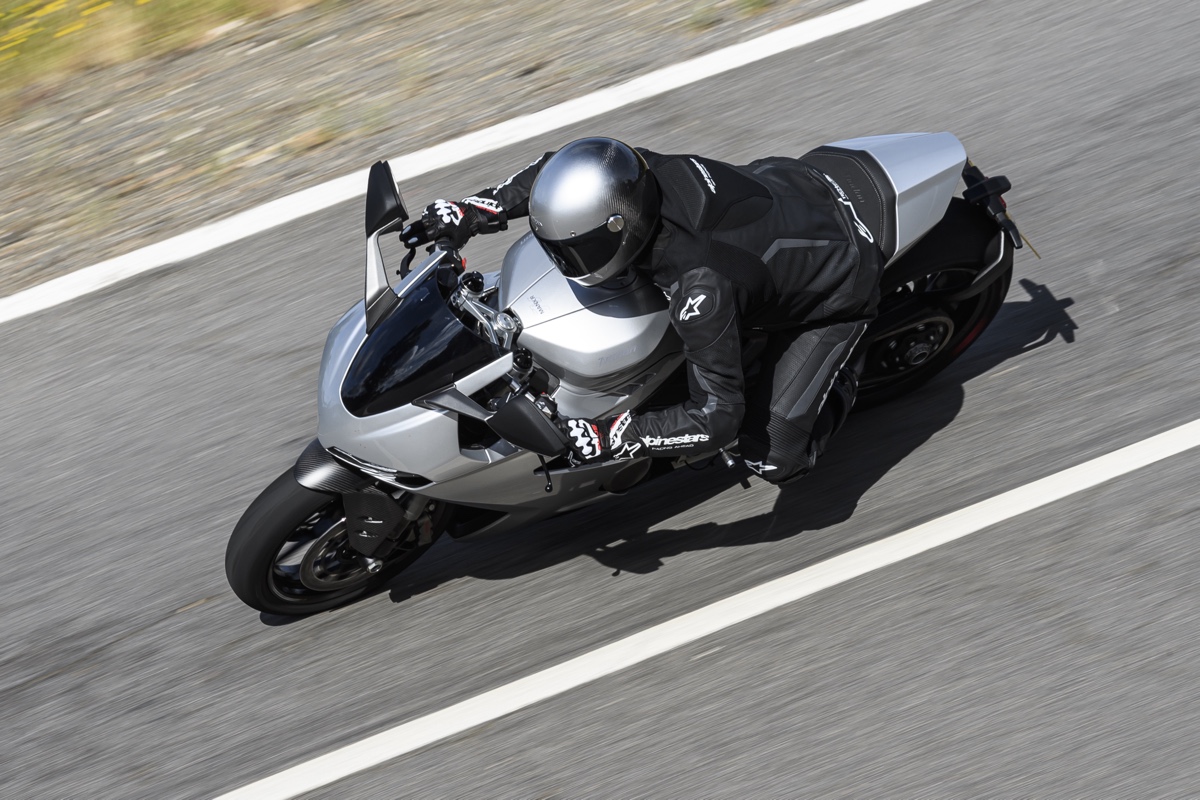

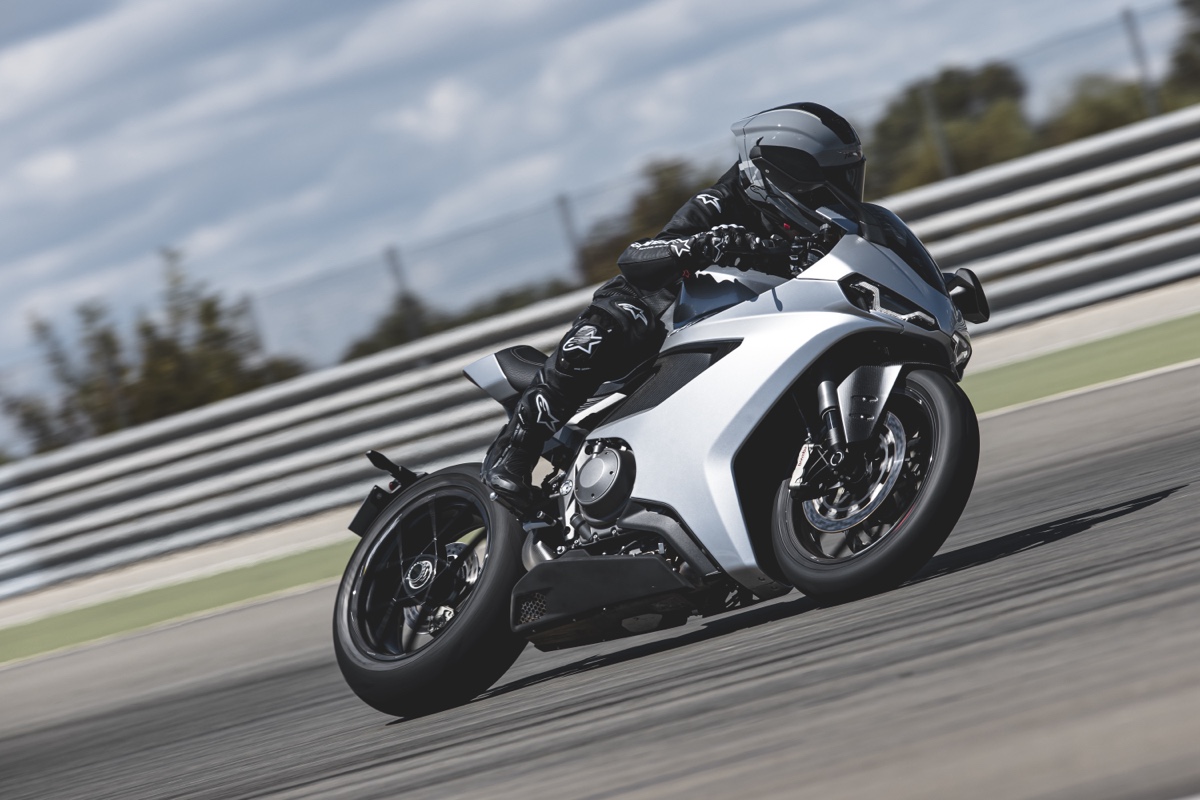

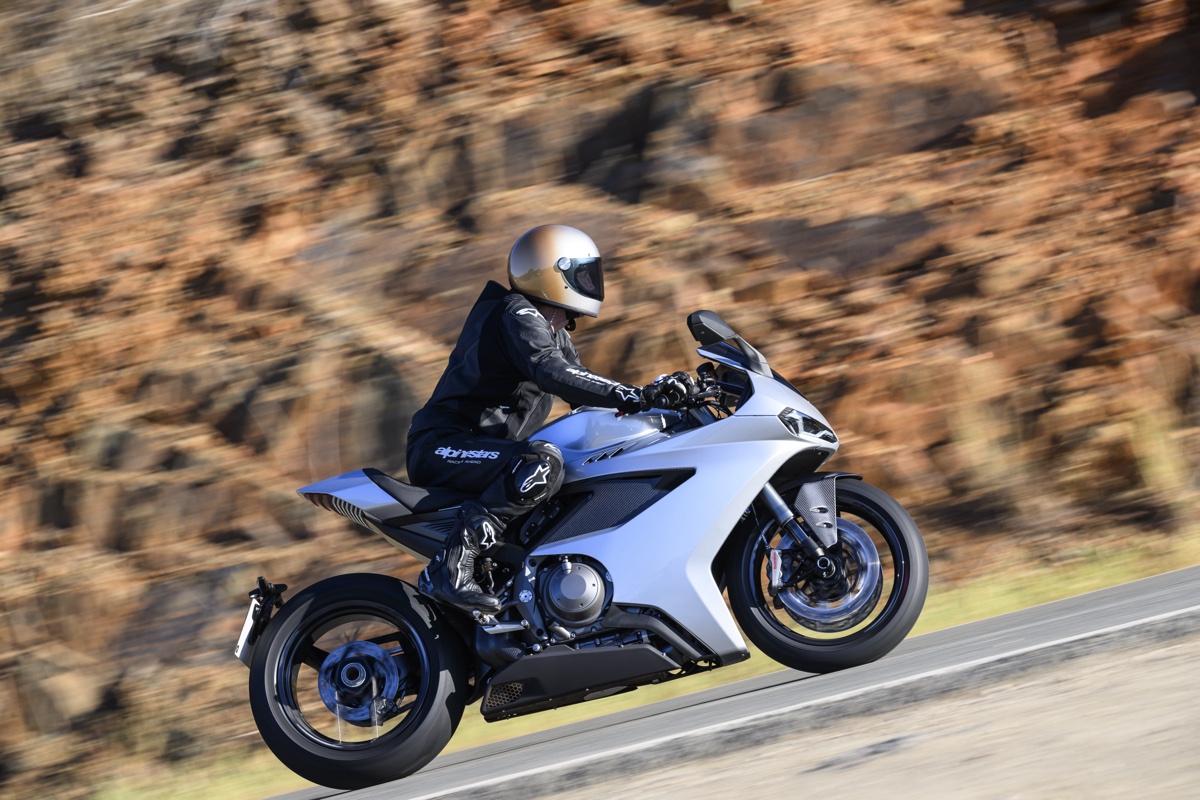

Former racer Adam Child of Cycle World has been one of the first riders to test the Manx R on the track:

“Norton’s Manx R absolutely delivers as a complete experience. Visually, it is stunning in the flesh. To my eye, it may even be the best-looking bike in the modern superbike class… As a road bike, it makes a lot of sense. It sounds every bit as good as it looks, produces a thick spread of midrange torque, and combines an informative dashboard with straightforward usability. It’s also reasonably comfortable… On track, the bike delivers exactly what it promises. It’s fun, engaging, fast, and full of character. The engine has strong power and torque, the brakes are phenomenal, and the chassis provides a high level of sporty feedback.” -Adam Child, Cycle World

Four Versions at Launch

Norton will offer the Manx R in four specification levels: Manx R, Manx R Apex, Manx R Signature, and Manx R First Edition.

• The base Manx R starts at £20,250 in the UK and includes the 206-hp V4, manually adjustable Marzocchi suspension, two-seat configuration, lightweight composite bodywork, full electronics suite, cast aluminum wheels, and integrated stainless steel exhaust.
• The Manx R Apex starts at £24,750 and adds electronically adjustable semi-active Marzocchi suspension, forged OZ Racing wheels, and other upgrades while retaining the two-seat layout.
• The Manx R Signature starts at £38,750 and moves into a more exotic single-seat specification with carbon-fiber bodywork, Rotobox carbon wheels, semi-active suspension, signature lighting and dash sequences, and higher-end finishing.
• The Manx R First Edition is limited to 150 examples and priced on application. It builds on the carbon-wheel / carbon-bodywork specification with titanium fixings, machined-finish billet aluminum components, colored Brembo Hypure calipers, an exclusive numbered top yoke, Union Jack airbrushed side infill panels, unique decals, quilted leather seat, special startup sequence, unique colorways, and an off-bike accessories package.

Overall, it’s an interesting spread of models. Norton isn’t aiming the Manx R only at ultra-wealthy collectors. The base model is expensive, yes, but not absurdly so for a premium superbike. In fact, the base Manx R appears to be significantly cheaper than a Ducati Panigale V4 (£24,995), and the same goes for the Manx R Apex (£24,750) versus the Panigale V4 S (£30,695).

At the other end of the spectrum, the Signature and First Edition versions provide the luxury and exclusivity expected of Norton’s new positioning.

Norton Manx R: Specs

Model: Norton Manx R
Manufacturer: Norton Motorcycles
Production: Designed, engineered, and built in Solihull, UK
Engine: 1200cc liquid-cooled 72-degree V4
Valvetrain: Chain-driven cams with idler gear, titanium inlet valves
Bore x Stroke: 82 mm x 56.8 mm
Compression Ratio: 14:1
Fuel Injection: Multi-point sequential injection with eight injectors
Throttle: Ride-by-wire
Power: 206 hp / 153.6 kW @ 11,500 rpm
Torque: 130 Nm / 96 lb-ft @ 9,000 rpm
Exhaust: Underslung 4-2-1 system with two catalytic converters and three lambda probes
Gearbox: Six-speed with bi-directional quickshifter
Clutch: Cable-operated assist-and-slip multi-plate wet clutch
Frame: Die-cast aluminum
Swingarm: Single-sided die-cast aluminum
Front Suspension: Marzocchi 45mm USD fork, 120mm travel
Rear Suspension: Marzocchi monoshock, 126mm travel
Front Brakes: Twin 320mm semi-floating discs, Brembo Hypure four-piston radial calipers
Rear Brake: 245mm disc, two-piston caliper
ABS: Bosch Cornering ABS EVO
Front Tire: Pirelli Diablo Supercorsa SP V4, 120/70 ZR17
Rear Tire: Pirelli Diablo Supercorsa SP V4, 200/55 ZR17
Wheelbase: 1435 mm
Rake / Trail: 24.1 degrees / 94.5 mm
Seat Height: 840 mm
Fuel Capacity: 14.5 liters
Weight: 210 kg wet, no fuel
Ride Modes: Rain, Road, Sport, Track 1, Track 2
Display: Eight-inch full-color touchscreen TFT
Service Interval: 12 months / 10,000 miles
Warranty: 36 months / 30,000 miles
UK Price: From £20,250

The Return of a Legend?

Calling any new motorcycle a legend is premature. Legends are made over time, by riders, roads, races, failures, victories, and stories. The original Manx earned its name the hard way, lap after lap, year after year, in the hands of racers who trusted it with their lives.

The new Manx R hasn’t earned that kind of mythology yet. On paper, the ingredients are promising, but the model has to do something truly challenging. It hasn’t been designed for people to remember the Manx name, but to take Norton seriously again. That’s a much harder thing to do. But if the Manx R proves reliable, well-supported, and genuinely rewarding to ride, it could do just that.
