Suzuki Katana Restomod by dB Customs

Suzuki Katana Streetfighter Restomod

Darren Begg of dB Customs has quickly established himself as a leader in world-class restomod builds.  His builds often retain the original silhouette and paint scheme of the original, while upgrading the powerplant, suspension, brakes, and switch gear. The result are high-powered icons of yesteryear, brought fully into the modern age — the true spirit of the restomod.

Suzuki Katana Streetfighter Restomod

Now dB Customs is back with a 1260cc Katana 1000, clad with carbon fiber and offering a 173-hp GS-E motor built by Ray Mancini of Xtreme Motorsports. Below, we get the full story on this staggering build.

Katana Street Fighter / Restomod: Builder Interview

Suzuki Katana Streetfighter Restomod

• Please tell us a bit about yourself, your history with motorcycles, and your workshop.

Our company, dB Customs, has been building boutique restomod motorcycles for their customers since 2015. Our workshop is fully equipped with welding and machining facilities for custom fabrication, and vapor blasting for restoration and finishing of various parts and components (for both in-house builds and other customers parts).

• What’s the make, model, and year of the bike?

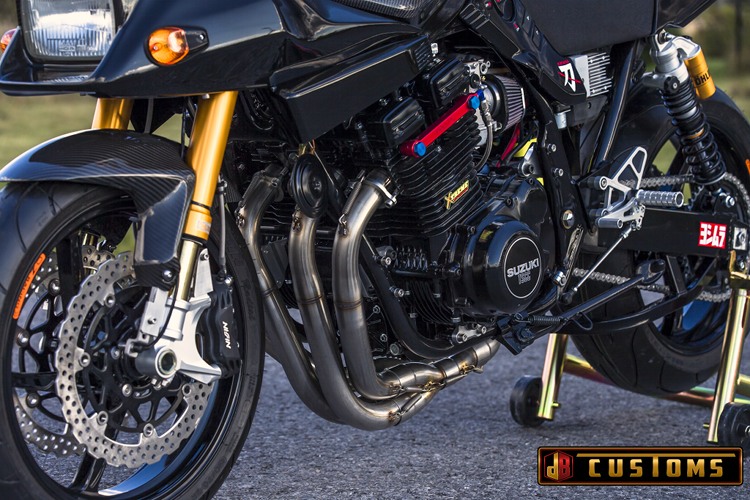

The bike is a 1982 Katana 1000 that has received a Ray Mancini built (Xtreme Motorsports) GS-E engine transplant. The engine was bored to 1260cc and with Ray’s head work and other modifications, it dyno’d at 173hp and 110ft-lbs of torque at the countershaft.

Suzuki Katana Streetfighter Restomod

• Why was this bike built?

Our customer from Arizona had been following our work, loved our style, and so contacted us and asked if we were interested in building a high end Suzuki Katana restomod. This was a bike I always wanted to build and so already had some ideas in mind for the project.

Suzuki Katana Streetfighter Restomod

• What was the design concept and what influenced the build?

We wanted to incorporate some carbon fiber features on the bike (front fender, tank cover, rear seat cowl) and use hints of red highlights, such as the Suzuki logo on the tank and rear cowl. In addition, we used all of the standard components that dB Customs are known for including in their builds, such as Brembo brake levers, OZ Racing wheels, Dyna ignition, JayGUI Racing exhaust, and OHLINS suspension all around.

Suzuki Katana Streetfighter Restomod

• What custom work was done to the bike?

A rear swingarm from a Suzuki Bandit 1200 was used and adapted to the Katana with custom pivot axle spacers and rear shock mounts for the twin OHLINS. A custom bent underbrace was welded onto the swingarm along with reinforcing pieces to add some rigidity to it. Custom spacers were made to center the rear OZ Racing wheel with 180/55-17 Michelin Pilot Power 2CT tire, along with a custom rear brake stay bracket.

Suzuki Katana Streetfighter Restomod

Custom triple clamps came from Pulse Performance, originally designed to adapt ZX14R forks to a ZRX1200R, then we manufactured a custom steering stem to fit these to the Katana. Front OHLINS forks were used, originally designed for a ZX14R, along with ZX14R front rotors and radial mount NISSIN brake calipers. Custom adapter brackets were made and welded to the frame to attach a set of Woodcraft rearsets that were originally designed for a Suzuki SV650.

Suzuki Katana Streetfighter Restomod

All paint work was completed by our amazingly talented guys over at Sketches Ink (no vinyl decals, all paint). All the switch gear was upgraded to modern units from a GSXR1000.

Suzuki Katana Streetfighter Restomod

• How would you classify this bike?

One may classify the bike as a street fighter, however I prefer the term Restomod because we kept the original paint scheme of the original Katana while modernizing the suspension and brakes, which to me is in the true spirit of a Restomod.

• Was there anything done during this build that you are particularly proud of?

Everything about this bike just flows together so well, it’s hard to pick just one thing. I feel that the minimalistic approach we took, with the carbon and red highlights, gave us that “less is more” result.

Suzuki Katana Streetfighter Restomod

Follow the Builder

Follow dB CustomsFacebook | Instagram | Web

All photos by Darren Begg
